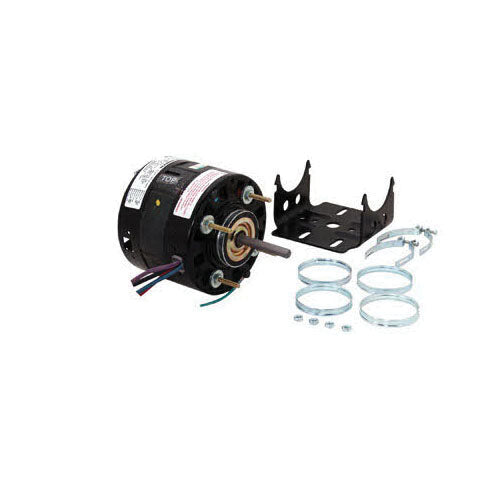

Regal Beloit RF6403 Century Shaded Pole FE Unit Heater AC Motor 1/10 hp 115/208 to 230 VAC

Product Description

The Regal Beloit RF6403 is a Century Shaded Pole FE Unit Heater AC Motor designed for various air moving applications. This motor has a horsepower rating of one-tenth and can operate at voltages from one hundred fifteen to two hundred thirty VAC. It is suitable for use in commercial condensing units, space heaters, and blower units.

• Mechanically reversible motor
• Open enclosure type
• Easy to install with included mounting hardware

Product Highlights

This motor is designed for reliable performance in residential and commercial setups. It features a grommeted lead exit for streamlined installation and set up.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: RF6403

Technical Specifications

• Horsepower: 1/10 hp
• Voltage Rating: 115/208 to 230 VAC
• Speed: 1050 to 900 rpm
• Rotation: CCWSE
• Frame: NEMA 42Y
• Enclosure Type: Open
• Amperage Rating: 4/2 A
• Package Weight: 12.0 lb
• Temperature Rating: 40 deg C
• Frequency Rating: 50/60 Hz
• Insulation Class: Class A
• Includes: Base, Mounting Clamps and Mounting Rings
• Number of Phases: 1 ph
• Service Factor: 1
