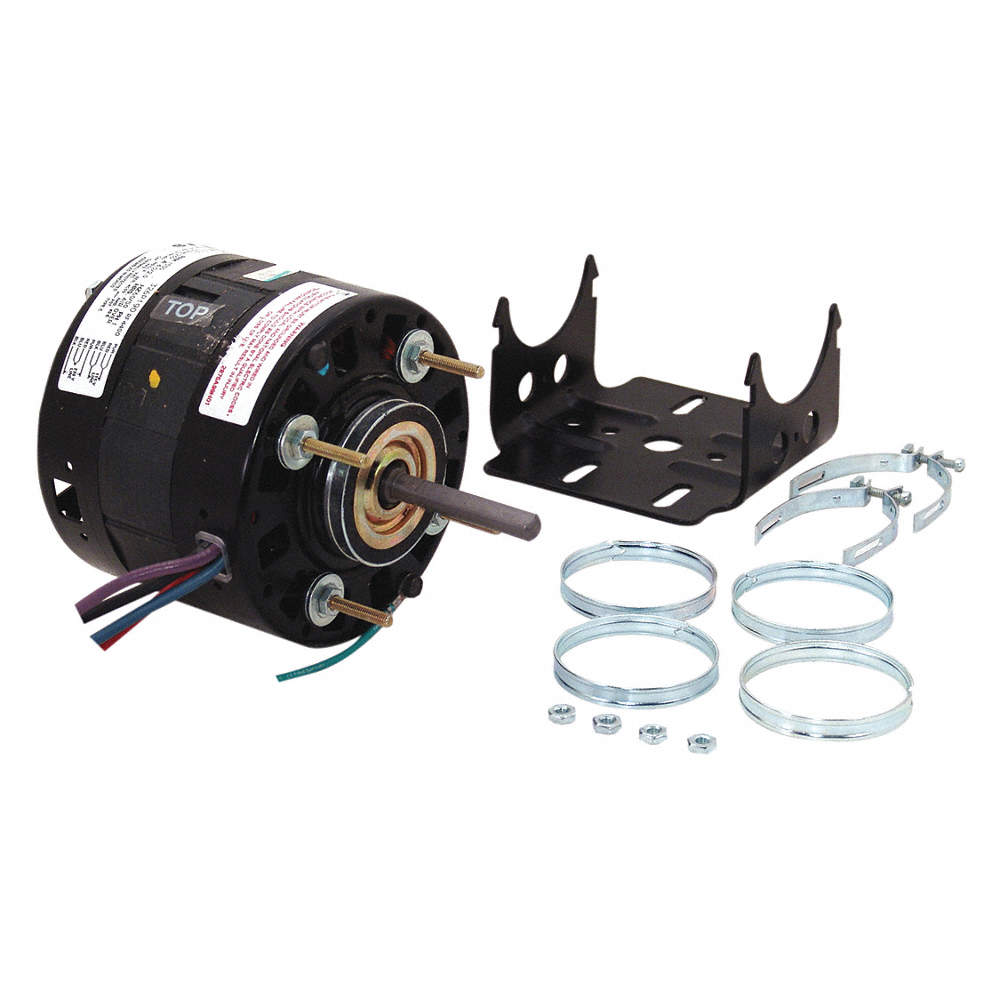

Regal Beloit RF6402 Century by Packard Shaded Pole Replacement Motor 1/10 hp 115/208 to 230 VAC

Product Description

The Regal Beloit RF6402 Century by Packard Shaded Pole Replacement Motor is a reliable motor option designed for various electrical applications. With a horsepower of 1/10 and a voltage range of 115/208 to 230 VAC, this motor is suitable for both residential and commercial use. It operates at a speed of 1050 rpm and features a stud mounting style, making installation straightforward.

• Automatic overload protection
• Mechanically reversible operation
• Compatibility with GE bases

Product Highlights

This motor offers automatic overload protection and is designed to be mechanically reversible for flexible installation. Suitable for applications requiring 50/60 Hz frequency.

Product Information

Standard Information

• Brand: Regal Beloit
• Part Number: RF6402

Technical Specifications

• Horsepower: 1/10 hp
• Voltage Rating: 115/208 to 230 VAC
• Speed: 1050 rpm
• Mounting Style: Stud
• Amperage Rating: 4/2 A
• Frequency Rating: 50/60 Hz
• Frame: NEMA 42Y
• Dimensions: 5 in Dia
• Service Factor: 1
• Rotation: CWSE
• Shaft Size: 3/8 in Dia x 2-3/4 in L
• Package Weight: 11.0 lb
• Temperature Rating: 40 deg C Ambient
• Bearing Type: Sleeve
• Enclosure Type: Open
• Country of Origin: MX
