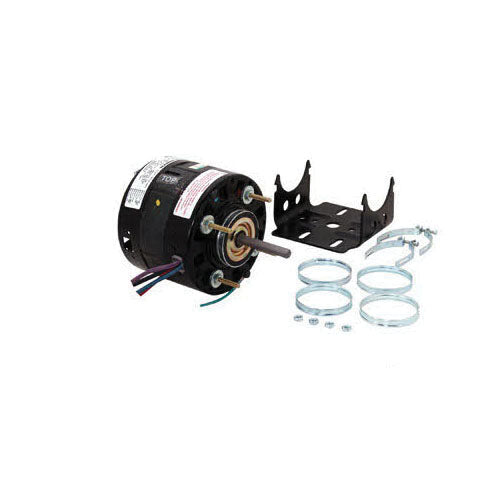

Regal Beloit RF4400 Century Shaded Pole FE Unit Heater AC Motor, 1/10 hp, NEMA 42Y

Product Description

The REGAL BELOIT RF4400 Century Shaded Pole FE Unit Heater AC Motor is rated at 1/10 hp and operates at 115/208 to 230 VAC and 50/60 Hz. This single-phase motor features an open enclosure, NEMA 42Y frame, and a speed of 1550 rpm. It is suitable for commercial condensing units, space heaters, blower units, and other air-moving applications.

• Features a grommeted lead exit and mechanically reversible design.
• Includes a 1/2 in adapter, 2-1/4 in rubber rings, and base mounting.
• Equipped with 30 in color-coded leads.

Product Highlights

The REGAL BELOIT RF4400 motor is ideal for air conditioner, condenser fan, fan coil, refrigeration, and unit heater applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: RF4400

Technical Specifications

• Amperage Rating: 4/2 A
• Application: Commercial Condensing Units, Space Heaters, Blower Units and Other Air Moving Applications
• Application Type: Air Conditioner Motors, Condenser Fan Motors, Fan Coil Motors, Refrigeration Motors, Unit Heater Motors
• Bearing Type: Sleeve
• Enclosure Type: Open
• Frame: NEMA 42Y
• Frequency Rating: 50/60 Hz
• Horsepower: 1/10 hp
• Insulation Class: Class A
• Number of Phases: 1 ph
• Number of Speeds: 1
• Rotation: CWSE
• Service Factor: 1
• Shaft Size: 3/8 in Dia
• Speed: 1550 rpm
• Temperature Rating: 40 deg C
• Type: Shaded Pole FE
• Voltage Rating: 115/208 to 230 VAC
