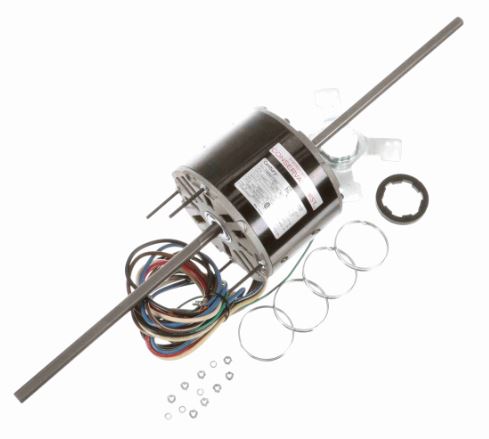

Regal Beloit RAL1026A Century Double Shaft UF Fan/Blower AC Motor, 1/4 hp, 115 VAC, 50/60 Hz, 1 ph, NEMA 48Y

Product Description

The Regal Beloit RAL1026A is a double shaft UF fan/blower AC motor rated at one fourth horsepower and operates on 115 VAC. It functions well for room air conditioners and comes with a semi-enclosed enclosure that is durable for operational use. This motor is ideal for HVAC professionals needing reliable performance.

• Energy efficient design
• 1/2 inch diameter flatted shaft
• Automatic protection features

Product Highlights

This motor includes mounting accessories, ensuring easy installation.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: RAL1026A

Technical Specifications

• Amperage Rating: 3.4 A
• Application: Room Air Conditioners
• Application Type: Air Conditioner Motors
• Bearing Type: Sleeve
• Dimensions: 5-5/8 inches diameter x 20 inches length
• Enclosure Type: Semi-Enclosed
• Frame: NEMA 48Y
• Frequency Rating: 50/60 Hz
• Horsepower: 1/4 hp
• Insulation Class: Class A
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 3
• Package Weight: 20.0 lb
• Rotation: CCWLE
• Service Factor: 1
• Shaft Size: 1/2 inch diameter
• Speed: 1075 rpm
• Temperature Rating: 40 degrees C
• Type: Double Shaft UF
• Voltage Rating: 115 VAC
