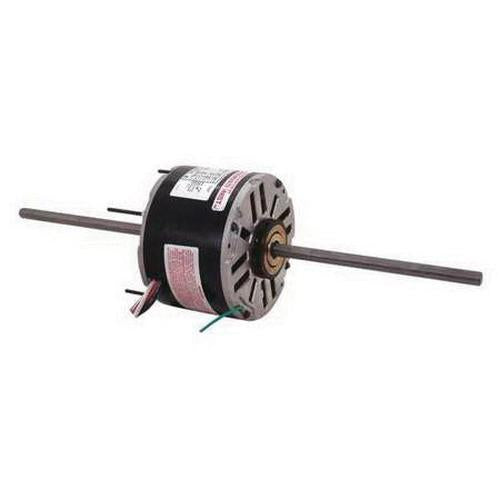

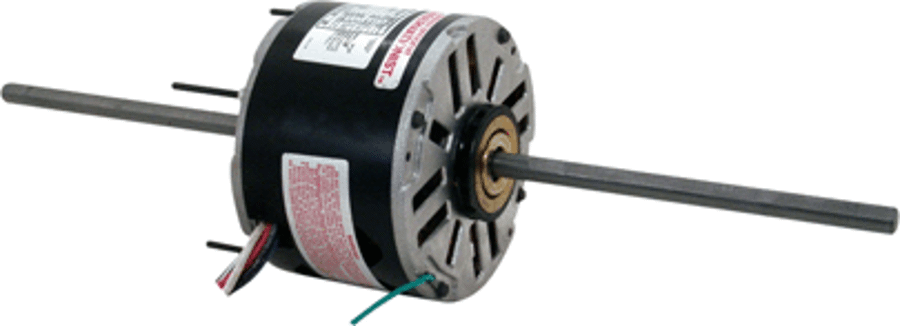

Regal Beloit RA1056 Blower Motor 1/2hp 5-5/8 inches

Product Description

The REGAL BELOIT RA1056 blower motor is a 1/2hp motor designed for HVAC applications. It operates at 208-230V and features a 5-5/8" diameter. This motor is suitable for room air conditioners and offers three speeds for adjustable performance. It has automatic thermal protection and is energy efficient.

• Energy efficient
• 1/2 in Dia flatted shaft
• Automatic protection

Product Highlights

Designed for HVAC applications, this motor provides reliable performance with multiple speed settings and built-in protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: RA1056
• Country of Origin: India

Technical Specifications

• Application: HVAC
• Amperage Rating: 2.7 A
• Application Type: Air Conditioner Motors
• Bearing Type: Sleeve
• Enclosure Type: Semi-Enclosed
• Frame: NEMA 48Y
• Frequency Rating: 60 Hz
• Horsepower: 1/2 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 3
• Rotation: CCWLE
• Service Factor: 1
• Shaft Size: 1/2 in Dia
• Speed: 1075 rpm
• Temperature Rating: 60 deg C
• Type: Double Shaft UF
• Voltage Rating: 208 to 230 VAC
• Output HP: 1/2 Hp
• Output KW: 0.37 kW
• Phase: 1
• Efficiency: 67.6 %
• Ambient Temperature: 60 °C
• Current: 2.7 A
• Duty: Air Over
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Mounting: Resilient Ring/Extended Studs
• Motor Orientation: Horizontal
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 20.00 in
• Frame Length: 4.50 in
• Shaft Diameter: 0.500 in
• Frame Size: 48
• Motor Enclosure Type: Open Air Over
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
