Product Description

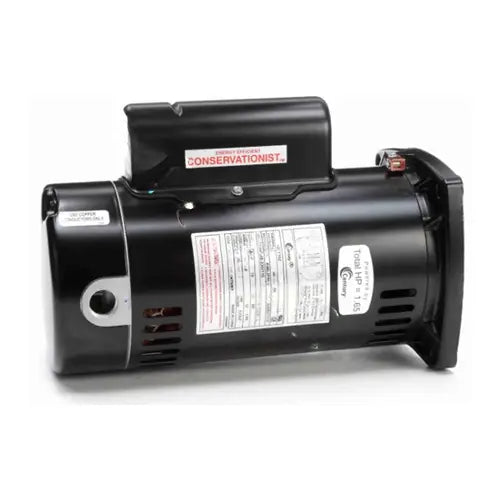

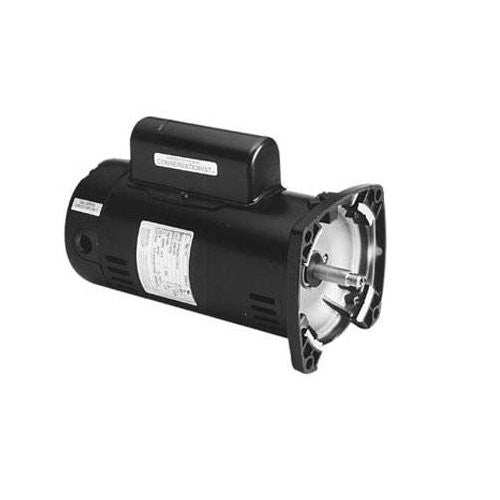

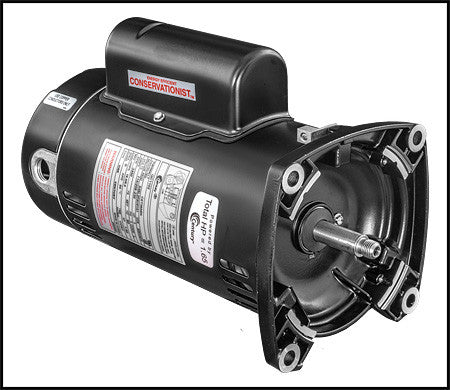

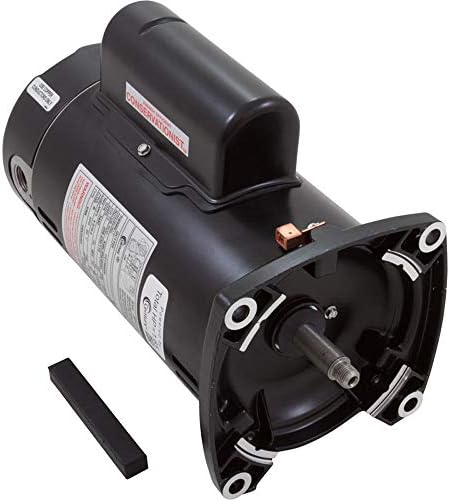

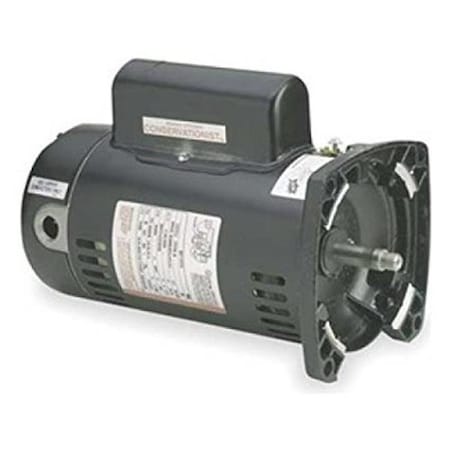

The Regal Beloit QC1102 is a 1 HP energy-efficient motor designed for pool filter pump systems. Operating at 115/230 Volts and 3450 RPM, it features a 48Y frame and a square flange for easy installation. The motor is designed with a CCW rotation on the pump end and can withstand ambient temperatures up to 50°C.
- Energy Efficient 1 HP motor
- Operates at 115/230 Volts, 16.0/8.0 amps
- Features a 48Y frame and square flange
Product Highlights
Energy-efficient motor with a square flange design, suitable for various pool filter pump applications. It operates at 1 HP and 115/230V.
Product Information
Standard Information
-
Brand: REGAL BELOIT
-
Manufacturer Part Number: QC1102
-
Country of Origin: United States
Technical Specifications
-
Brand: Regal Beloit
-
Model Name: QC1102
-
Speed: 3450 RPM
-
Voltage: 115V,208V,230V
-
Horsepower: 1 horse power
-
Manufacturer: SCP Distributors LLC (Pool Corp)
-
Item model number: QC1102
-
Diameter: 5-5/8 Inch
-
RPM: 3450
-
Frame: 48Y
-
Application: Many Sta-Rite®, Red Jacket, Pac Fab and American Products
-
Type: Full-Rated, UAK
-
OverallLength: 11.88 Inch
-
Phase: 1-Phase
-
Bearing Type: Sealed Ball
-
AmbientTemperature: 50 deg C
-
FrequencyRating: 60 Hz
-
FullLoadAmps: 16.0/8.0 A
-
HP: 1
-
Item: Two-Compartment Pool Filter Motor
-
MountingType: C-Face
-
StandardsApprovals: UL Approved, UL Recognized (E25022), CSA Certified (LR43341)
-
SubBrand: Century®
-
VoltageRating: 115/208-230 V
-
EnclosureDesign: Open Dripproof
-
ThrustHorsepower: 1.65
-
ShaftDesign: Threaded
-
InsulationClass: B
-
ShaftMaterial: 303 Stainless Steel
-
ShaftDiameter: 5/8 Inch
-
DutyCycle: Continuous
-
MotorThermalProtection: Auto
-
EfficiencyGroup: High
-
NumberofSpeed: 1-Speed
-
MotorDesign: Capacitor Start/Run
-
FlangeType: Square
-
ServiceFactor: 1.65
-
MotorShaftRotation: CCWPE
-
Shaft Diameter: 0.625 inch
-
Motor Enclosure Type: Open Drip Proof
-
Motor Speed: 1-Speed
-
Ambient temperature: 50 degrees Celsius
-
Insulation Class: B
-
Service Factor: 1.65
-
Commercial, Residential, or Professional: Residential
-
Motor Frame Size: 48Y
-
Thrust HP: 1.65
-
RPMs Min: 3450
-
Motor Capacitor Type: Start,Run
-
Green or Energy Efficient Product: True
-
RPMs Max: 3450
-
Amps Low Speed: 8
-
Frequency Rating (Hz): 60
-
Motor Shaft Rotation: Counterclockwise Pulley End
-
Amps High Speed: 16
-
Standards Approvals: CSA Certified
-
Motor Thermal Protection: Automatic Reset
-
Pump Speed: Single Speed
