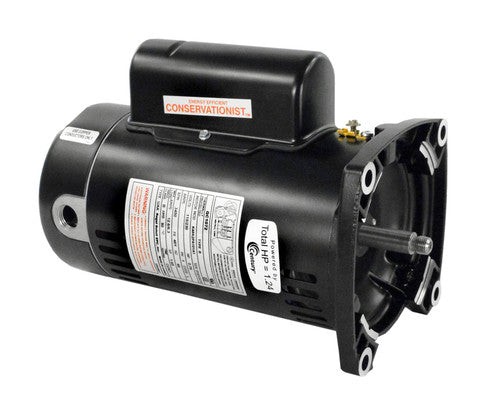

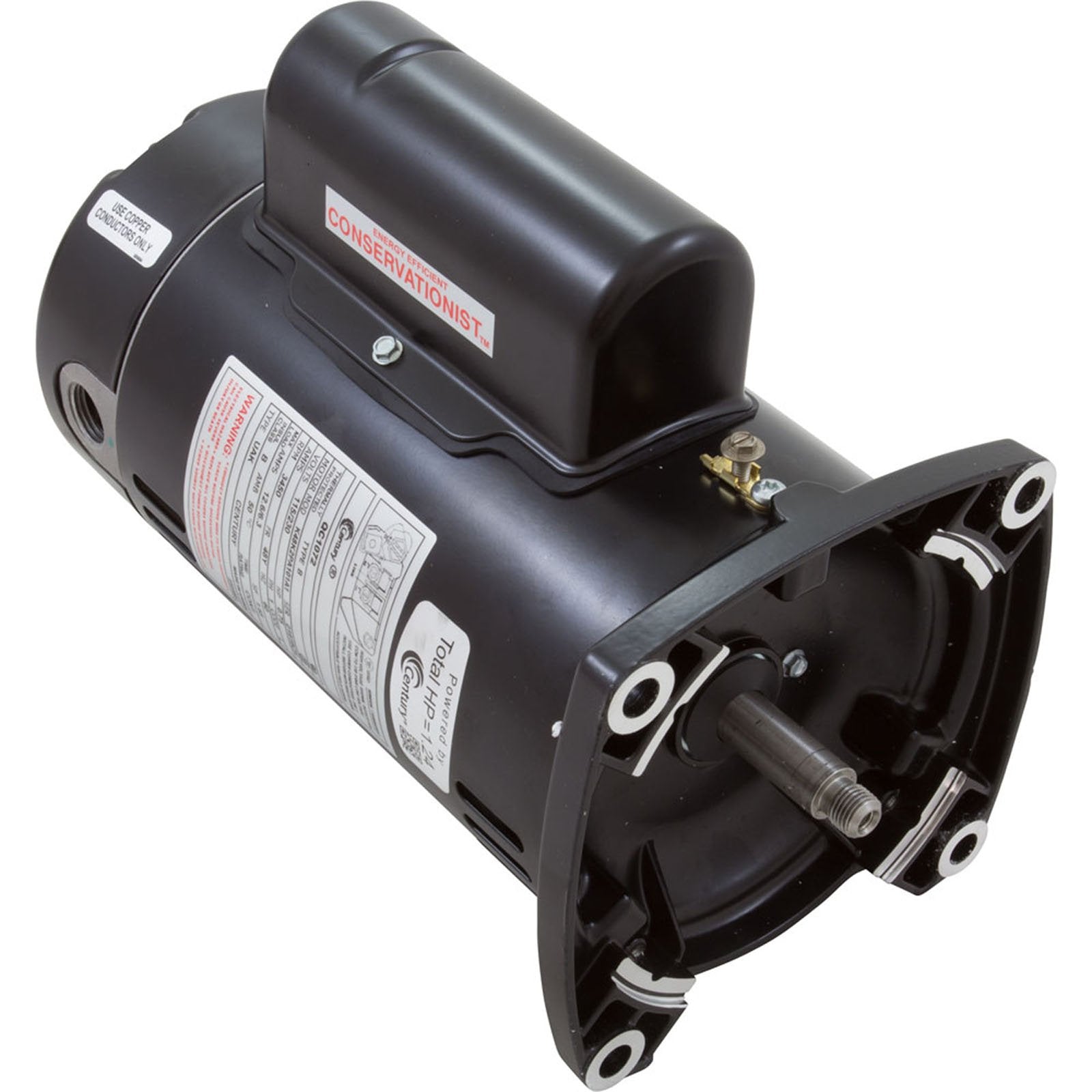

Regal Beloit QC1072 Motor 0.75 HP 48Y Square Face

Product Description

The REGAL BELOIT QC1072 is a 0.75 HP motor with a 48Y square face. This Century pool pump motor operates at 230/115 V, 60 Hz, and 3600 RPM. It is designed with an open dripproof enclosure and automatic thermal protection. Suitable for various applications including Sta-Rite, Red Jacket, Pac Fab, and American Products.

• 0.75 HP
• 48Y Square Face
• Open Dripproof enclosure

Product Highlights

0.75 HP motor with 48Y square face, designed for pool pump applications with open dripproof enclosure and automatic thermal protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: QC1072
• Country of Origin: United States

Technical Specifications

• Phase: 1
• Output HP: 0.75 Hp
• Output KW: 0.56 kW
• Voltage: 230/115 V
• Speed: 3450 rpm
• Service Factor: 1.65
• Frame: 48Y
• Enclosure: Open Drip Proof
• Thermal Protection: Automatic
• Ambient Temperature: 50 deg C
• Frequency: 60 Hz
• Current: 6.3/12.6 A
• Duty Cycle: Continuous
• Insulation Class: B
• Number of Speeds: 1
• Electrical Type: Capacitor Start Capacitor Run
• Starting Method: Across The Line
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting Type: C-Face
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Thread
• Overall Length: 11.25 Inch
• Frame Length: 8.06 in
• Shaft Diameter: 0.625 inch
• Shaft Extension: 0.906 in
• Motor Design: Capacitor Start/Run
• Full Load Amps: 12.6/6.3 A
• Sub Brand: Century®
• Standards Approvals: UL Approved, UL Recognized (E25022), CSA Certified (LR43341)
• RPM: 3450
• Shaft Design: Threaded
• Motor Shaft Rotation: CCWPE
• Application: Many Sta-Rite®, Red Jacket, Pac Fab and American Products
• Efficiency Group: High
• Thrust Horsepower: 1.24
• HP: 0.75
• Type: Full-Rated, UAK
• Item: Two-Compartment Pool Filter Motor
• Motor Thermal Protection: Auto
• Bearing Type: Sealed Ball
• Flange Type: Square
• Voltage Rating: 115/230 V
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Motor Frame Size: 48Y
• Motor Capacitor Type: Start,Run
• Amps Low Speed: 6.3
• Frequency Rating (Hz): 60
• Amps High Speed: 12.6
• Finish Color: Satin Black
• Diameter: 5-5/8 Inch
