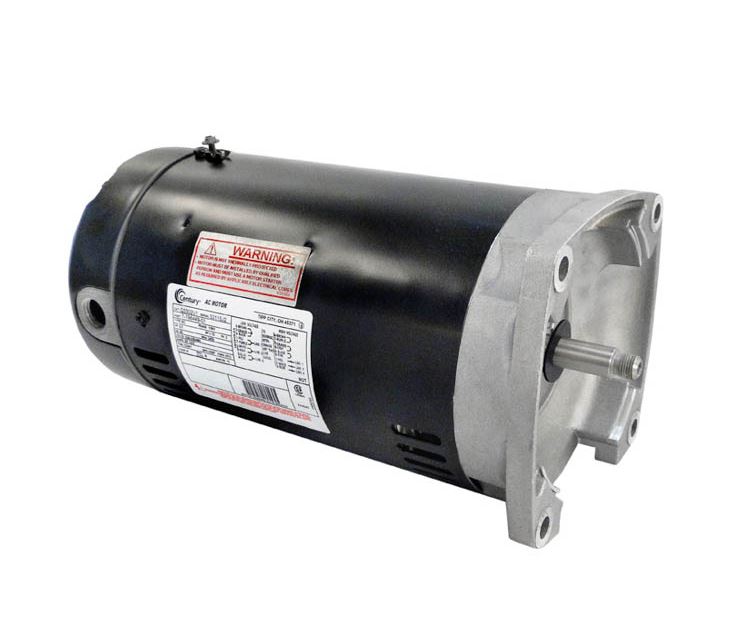

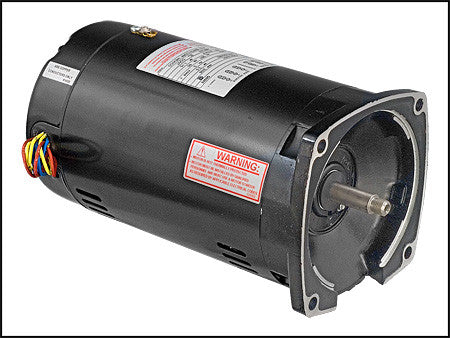

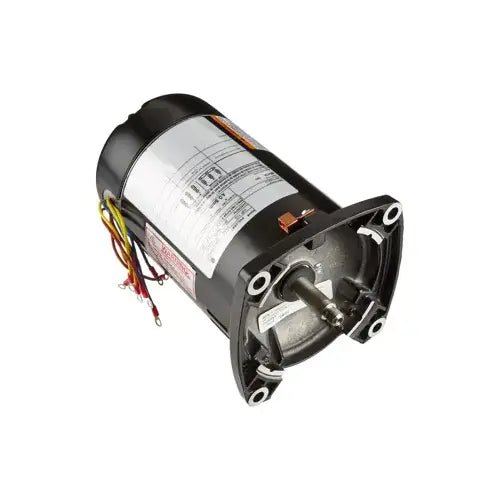

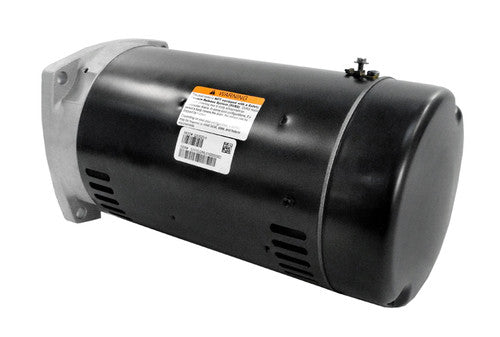

Regal Beloit Q3302V1 Pump Motor 3 HP Square Flange

Product Description

The REGAL BELOIT Q3302V1 is a 3 HP, 3-Phase motor designed for pool and spa pump applications. This full-rated motor operates at 208-230/460V and 3450 RPM, featuring a 56Y frame and square flange for easy mounting. It is suitable for commercial and large residential settings, ensuring compatibility with various pump models.

• Open Dripproof enclosure with all copper windings.
• Features a 303 stainless steel threaded shaft and sealed ball bearings.
• Designed for 50°C ambient temperatures and continuous duty cycle.

Product Highlights

This 3 HP motor is ideal for pool and spa pumps, offering reliable performance and durability with its robust design and quality components.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: Q3302V1
• Country of Origin: China

Technical Specifications

• Ambient Temperature: 50 deg C
• Bearing Type: Sealed Ball
• Brand: Regal Beloit
• Diameter: 6-1/2 Inch
• Duty Cycle: Continuous
• Efficiency Group: Standard
• Enclosure Design: Open Dripproof
• Finish Color: Satin Black
• Flange Material: Aluminum
• Flange Type: Square
• Frame: 56Y
• Frequency Rating: 60 Hz
• Full Load Amps: 9.7/4.9 A
• HP: 3
• Horsepower: 3 HP
• Insulation Class: B
• Item: Pool and Spa Pump Motor
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: None
• Mounting Type: C-Face
• Overall Length: 12.00 Inch
• Phase: 3-Phase
• RPM: 3450
• Service Factor: 1.15
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Length: 5/8 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL Approved, UL Recognized (E44549), CSA Certified (LR4642)
• Sub Brand: Century®
• Type: Full-Rated, SC
• Voltage Rating: 208-230/460 V
• Voltage: 208-230/460V
• Amperage: 9.7 amps at 208-230V; 4.9 amps at 460V
• Speed: 3450 RPM
• Frame Type: 56Y with a square flange
• Enclosure: Open Drip Proof (ODP)
• Rotation: Counterclockwise (CCW) at the pump end
• Ambient Temp: 50°C
