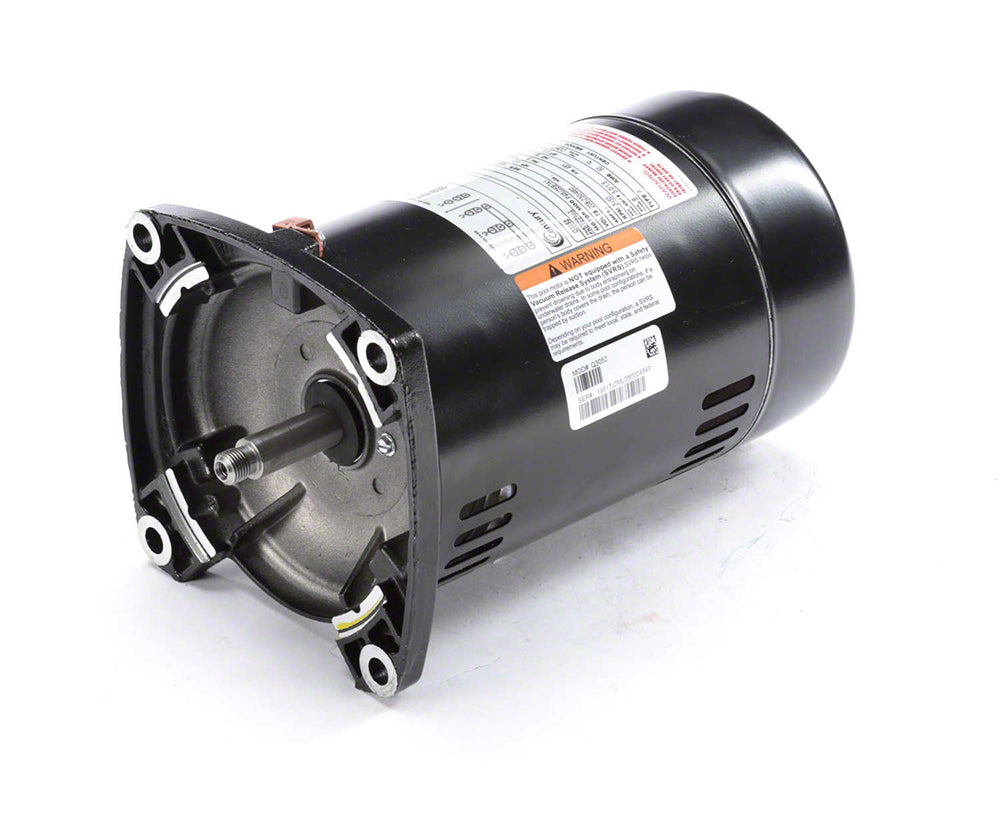

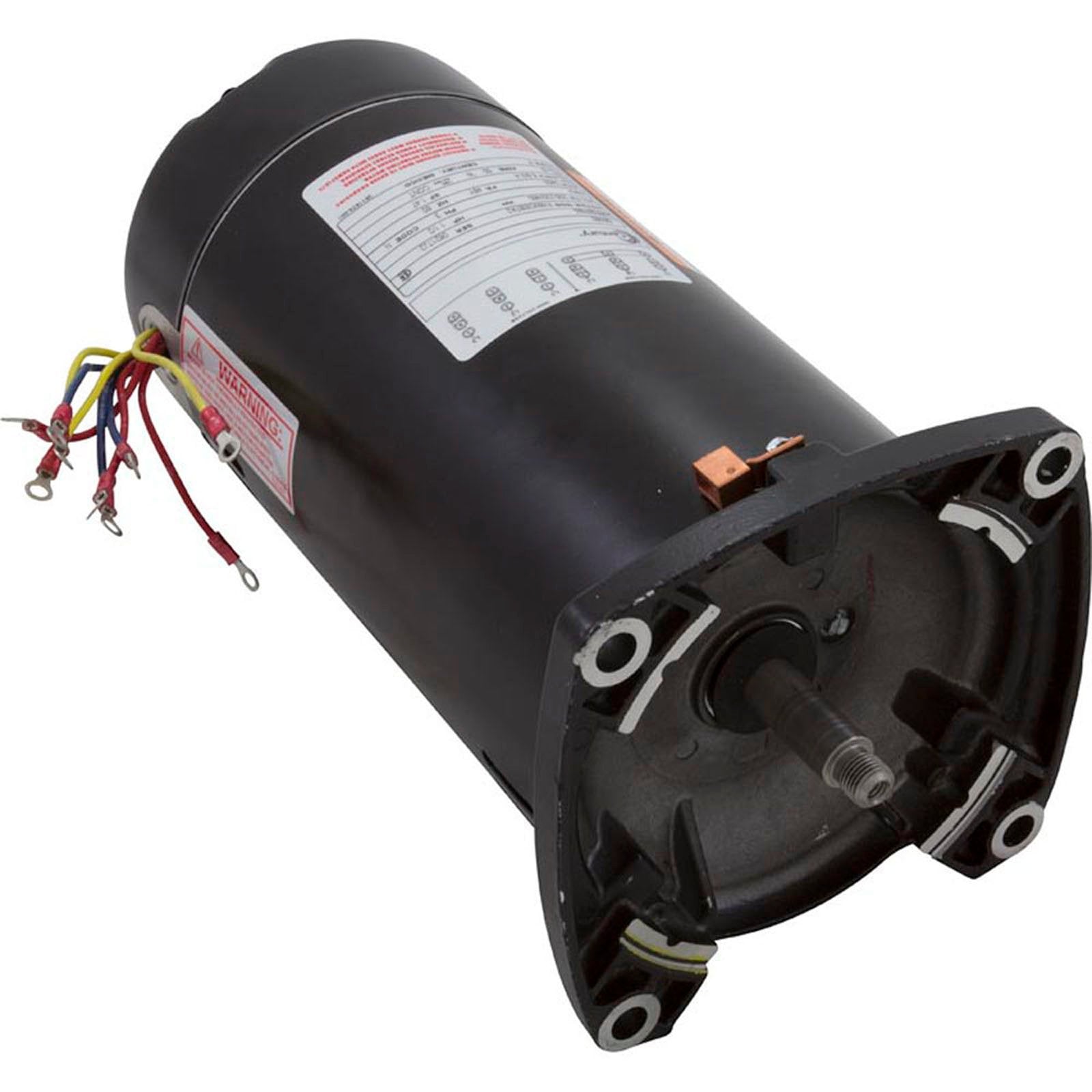

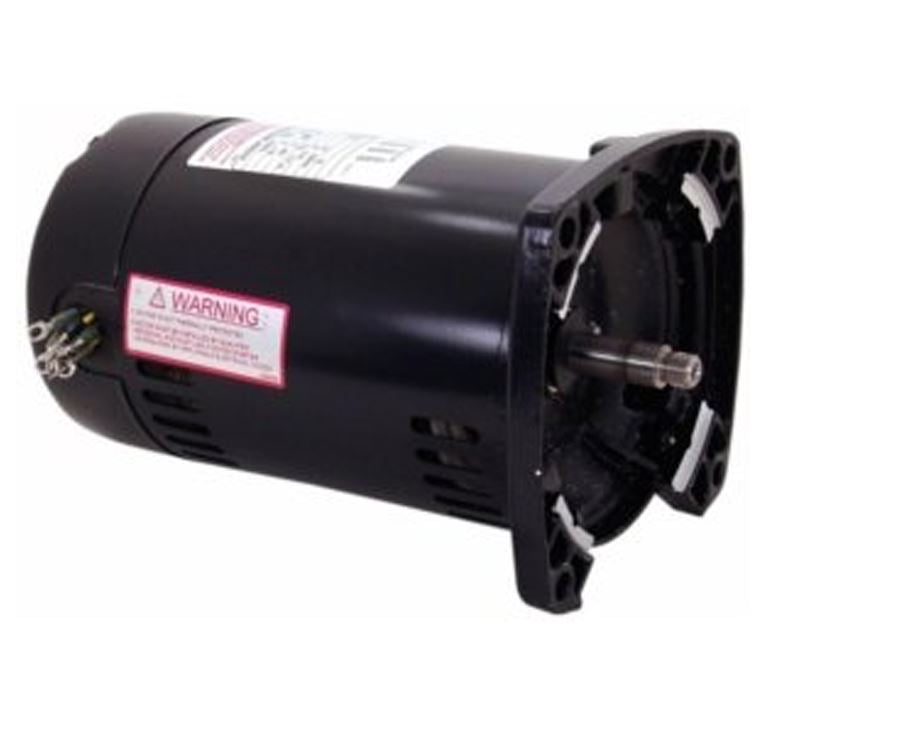

Regal Beloit Q3152 Century Pool Pump Motor, 1 1/2 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, 48Y Frame, ODP

Product Description

The REGAL BELOIT Q3152 Century Pool Pump Motor is a 1 1/2 HP motor designed for pool pump applications. This 3-phase motor operates at 60 Hz and is compatible with 208-230/460 V power systems. It features a 48Y frame, open dripproof enclosure, and runs at 3600 RPM. The motor is suitable for jet pump and square flange applications.

• Features all copper windings for efficient operation.
• Equipped with a 303 stainless steel threaded shaft.
• Utilizes sealed ball bearings for smooth and reliable performance.

Product Highlights

This Century pool pump motor delivers robust performance for demanding pool and spa applications. It is designed with quality materials and construction for long-lasting use.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: Q3152
• Country of Origin: Mexico

Technical Specifications

• Phase: 3
• Output HP: 1 1/2 Hp
• Output KW: 1.1 kW
• Voltage: 208-230/460 V
• Speed: 3450 rpm
• Service Factor: 1.47
• Frame: 48Y
• Enclosure: Open Drip Proof
• Thermal Protection: None
• Ambient Temperature: 50 deg C
• Frequency: 60 Hz
• Current: 6.8/3.4 A
• Duty: Continuous
• Insulation Class: B
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Polyphase
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Threaded
• Overall Length: 12.57 in
• Frame Length: 8.69 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 0.906 in
• Bearing Type: Sealed Ball
• FullLoadAmps: 6.8/3.4 A
• HP: 1.5
• Item: Pool and Spa Pump Motor
• MountingType: C-Face
• StandardsApprovals: UL Recognized (E46412), CSA Certified (LR43341)
• SubBrand: Century®
• VoltageRating: 208-230/460 V
• EnclosureDesign: Open Dripproof
• FlangeMaterial: Aluminum
• ThrustHorsepower: 2.21
• ShaftDesign: Threaded
• ShaftLength: 5/8 Inch
• ShaftMaterial: 303 Stainless Steel
• MotorShaftRotation: CCWPE
• MotorThermalProtection: None
• EfficiencyGroup: Standard
• FlangeType: Square
