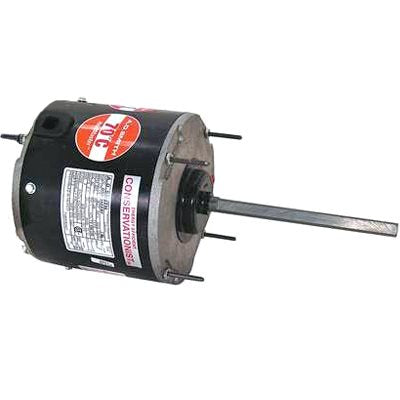

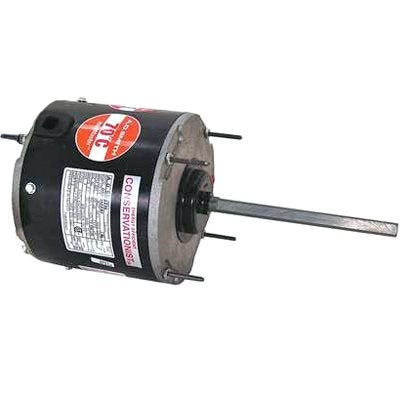

Regal Beloit ORM5488F Century HeatMaster 4-in-1 Multi-Horsepower UF Condenser Fan AC Motor 1/3 to 1/8 hp

Product Description

The Regal Beloit ORM5488F Century HeatMaster is a versatile multi-horsepower UF condenser fan AC motor. This motor operates efficiently within a voltage range of two hundred eight to two hundred thirty VAC at sixty Hertz. It features a NEMA forty-eight frame and operates at eight hundred twenty-five RPM, making it suitable for a variety of condenser fan applications.

• Energy efficient PSC design
• Dependable sealed ball bearings
• Flexible mounting options available

Product Highlights

The ORM5488F is built with an enclosed structure that ensures durability and reliability in various settings.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: ORM5488F

Technical Specifications

• Amperage Rating: 2.1 A
• Application Type: Condenser Fan Motors
• Bearing Type: Sleeve
• Enclosure Type: Enclosed
• Frame: NEMA 48
• Frequency Rating: 60 Hz
• Horsepower: 1/3 to 1/8 hp
• Insulation Class: Class F
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 1
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 6-5/8 in L
• Speed: 825 rpm
• Temperature Rating: 70 deg C
• Type: Multi-Horsepower UF
• Voltage Rating: 208 to 230 VAC
• Lead Length: 36 to 48 in
