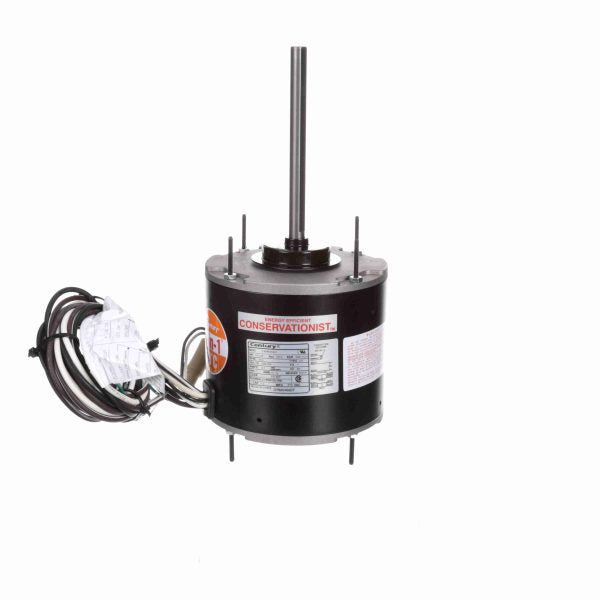

Regal Beloit ORM5488BF Century 4-In-1 Condenser Fan Motor 1/3-1/8 Hp

Product Description

The Regal Beloit ORM5488BF Century 4-In-1 Condenser Fan Motor is designed for various air-over applications. This single-phase motor operates at a voltage of 208-230V and a frequency of sixty Hz, providing reliable performance with a power range of one-third to one-eighth horsepower at a speed of eight hundred twenty-five RPM. The motor features a TEAO enclosure, extended mounting studs, and automatic thermal protection for enhanced safety.

• Features a diameter of five point six inches.
• Includes Class F insulation and thermal protection.
• Equipped with a half-inch diameter shaft with double flat and leads of forty-eight inches.

Product Highlights

Product Information

Standard Information

• Phase: 1
• Output HP: 1/3-1/8 Hp

Technical Specifications

• Output KW: 0.25 kW
• Voltage: 208-230 V
• Speed: 825 rpm
• Service Factor: 1
• Frame: 48
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 2.1 A
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 8
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 12.25 in
• Frame Length: 4.25 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.5 in
