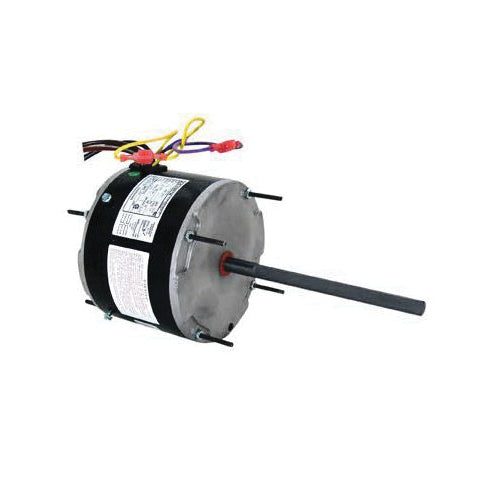

Regal Beloit ORM5488B Century Condenser Fan Motor 208 to 230 V

Product Description

The Regal Beloit ORM5488B Century Condenser Fan Motor is designed for HVAC/R applications. This motor operates on a voltage range of 208 to 230 V and functions at a frequency of sixty Hertz. It features a totally enclosed air over design and runs at a speed of eight hundred twenty-five revolutions per minute.

• Offers a 4-in-1 condenser fan motor solution
• Requires a capacitor rated at 7.5 Mfd-370 Volts (not included)
• Includes extended stud shaft ends and mounting holes in the shell

Product Highlights

This motor is thermally protected and employs stud mounting for easy installation.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: ORM5488B

Technical Specifications

• Amperage Rating: 2.1 A
• Application Type: HVAC/R
• Bearing Type: Ball
• Enclosure Type: Totally Enclosed Air Over
• Frame: 48
• Frequency Rating: 60 Hz
• Insulation Class: B
• Material: Steel
• Mounting Type: Stud
• Number of Speeds: 1
• Phase: Single
• Rotation: CW/CCW
• Service Factor: 1
• Shaft Size: 0.5 x 6.5 inches
• Speed: 825 rpm
• Temperature Rating: 60 degrees Celsius
• Voltage Rating: 208 to 230 V
