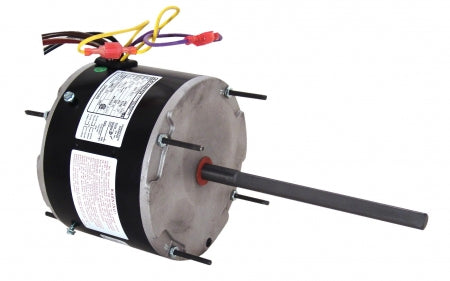

Regal Beloit ORM5458F Century HeatMaster 4-in-1 Multi-Horsepower UF Condenser Fan AC Motor 1/3 to 1/6 hp 208 to 230 VAC

Product Description

The Regal Beloit ORM5458F is a Century HeatMaster 4-in-1 Multi-Horsepower UF Condenser Fan AC Motor designed for efficient operation in a variety of air conditioning applications. This motor supports horsepower ratings from one third to one sixth and operates on a voltage range of two hundred eight to two hundred thirty volts.

• Energy efficient PSC design
• Reversible operation
• Mounting options available

Product Highlights

This motor features an energy-efficient design and is suitable for different condenser fan applications.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: ORM5458F

Technical Specifications

• Amperage Rating: 2.1 A
• Application Type: Condenser Fan Motors
• Bearing Type: Sleeve
• Dimensions: 5-5/8 in Dia x 10-5/8 in L
• Enclosure Type: Enclosed
• Frame: NEMA 48
• Frequency Rating: 60 Hz
• Horsepower: 1/3 to 1/6 hp
• Insulation Class: Class F
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 1
• Package Weight: 12.0 lb
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 6-5/8 in L
• Speed: 1075 rpm
• Temperature Rating: 70 deg C
• Type: Multi-Horsepower UF
• Voltage Rating: 208 to 230 VAC
