Regal Beloit onr6406 Replacement Motor 1/8 Hp 1050 Rpm

Product Description

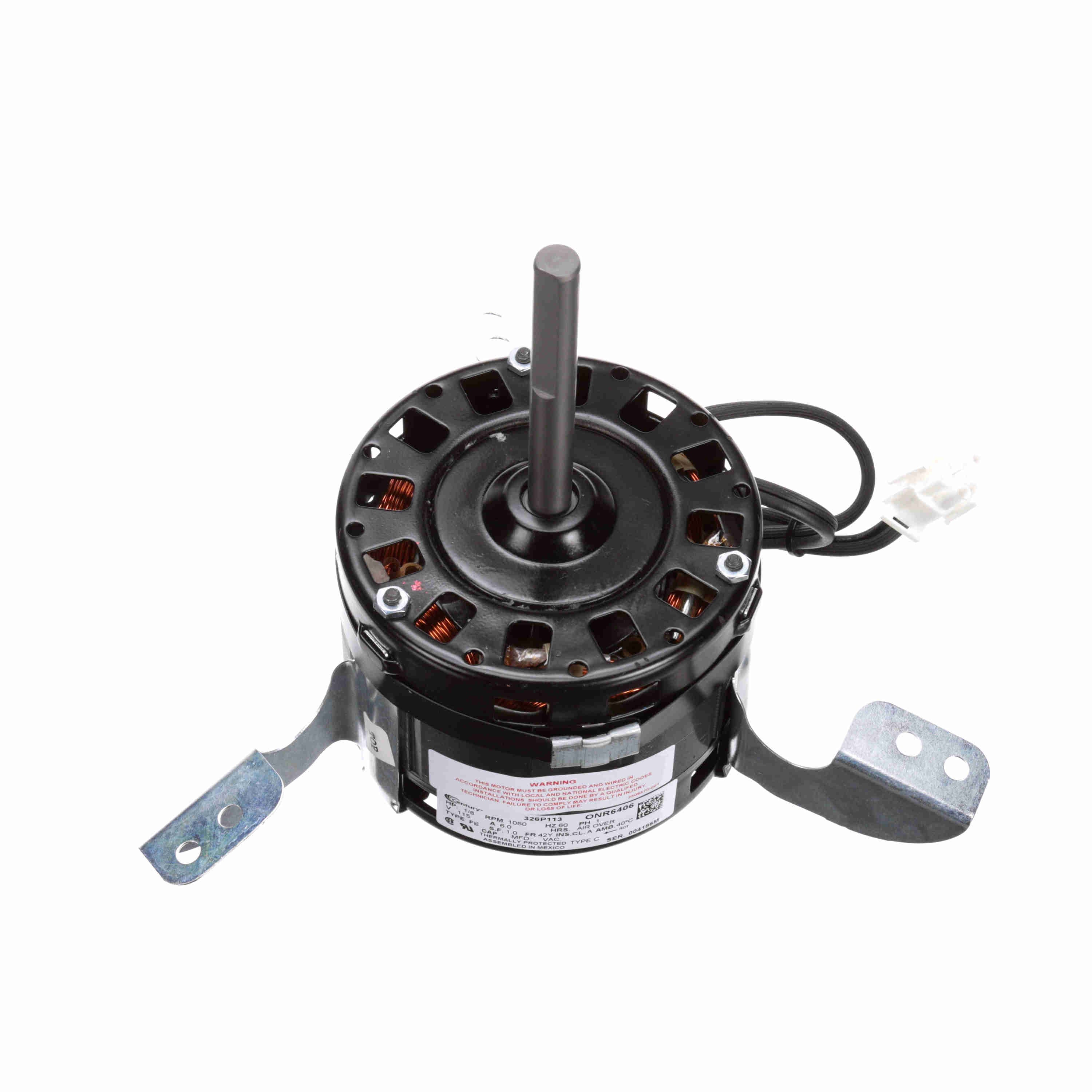

The REGAL BELOIT onr6406 is a single-phase, open air over (OAO) replacement motor rated at 1/8 horsepower and 1050 RPM. Operating on 115 volts at 60 Hz, it draws 6.0 amps and fits a 42Y frame configuration. The motor features automatic thermal protection and a Class A insulation rating, making it a direct OEM-style replacement for residential and light commercial HVAC and fan applications. Rotation is clockwise when viewed from the shaft end. Licensed HVAC technicians and equipment service professionals handle installation in the field.

This motor is suited for air over duty applications where airflow across the motor provides cooling. Typical install scenarios include evaporator fan assemblies, condenser fan units, and other forced-air equipment requiring a compact 42Y frame motor. It carries UL Recognized and CSA certifications and is rated A2L compliant, making it appropriate for use in systems using lower-GWP refrigerants. The motor is also cataloged under part number 326P113.

Key Features

• 1/8 HP output at 1050 RPM for low-speed fan applications
• 42Y frame for direct OEM-style fitment in compatible assemblies
• Automatic thermal protection guards against overheating
• Open air over enclosure — relies on airflow for motor cooling
• UL Recognized and CSA certified
• A2L compliant for use in applicable system environments

Compatibility

This motor is also referenced under part number 326P113. Designed as an OEM-style replacement for single-phase, 42Y frame air over duty fan motors in residential and light commercial HVAC equipment.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the equipment before removing the existing motor. Verify frame size, rotation direction, and shaft dimensions match the application before mounting. Follow all applicable local codes and manufacturer wiring diagrams when making electrical connections.

Technical Specifications

• Output Power: 1/8 HP (0.10 kW)
• Voltage: 115 volts
• Current: 6.0 amps
• Frequency: 60 Hz
• Speed: 1050 RPM
• Number of Speeds: 1
• Phase: 1
• Frame: 42Y
• Enclosure: Open Air Over
• Duty: Air Over
• Rotation: Clockwise from shaft end
• Thermal Protection: Automatic
• Insulation Class: A
• Ambient Temperature: 40 degrees C
• Service Factor: 1
• Certifications: UL Recognized, CSA, A2L Compliant

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: onr6406
