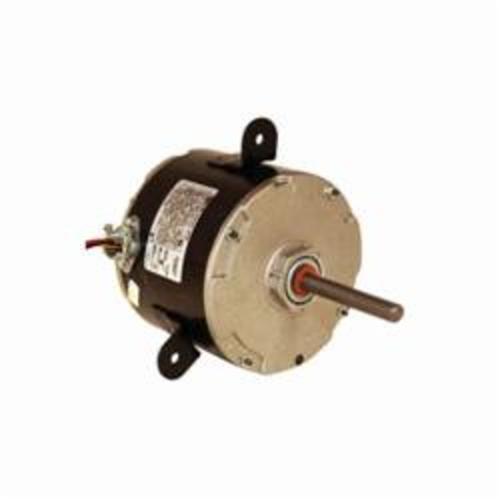

Regal Beloit OLG1036 Century by Packard Direct Replacement Motor, 1/3 hp, 208 to 230 VAC, 60 Hz, 1 ph, NEMA 48

Product Description

The Regal Beloit OLG1036 is a Century by Packard direct replacement motor, designed for efficient operation in HVAC systems. This motor functions at one-third horsepower with a voltage range of 208 to 230 VAC and operates at sixty hertz.

• Automatic overload protection
• NEMA 48 frame
• Enclosed motor for durability

Product Highlights

This motor is suitable for a variety of applications, featuring a lug mount for easy installation and a speed rating of 1075 RPM.

Product Information

Standard Information

• Brand: Regal Beloit
• Part Number: OLG1036

Technical Specifications

• Horsepower: 1/3 hp
• Voltage Rating: 208 to 230 VAC
• Amperage Rating: 2 A
• Frame: NEMA 48
• Speed: 1075 RPM
• Rotation: CWSE
• Mounting Style: Lug
• Service Factor: 1
• Enclosure Type: Enclosed
• Number of Phases: 1 ph
• Bearing Type: Sleeve
• Temperature Rating: 40 deg C Ambient
• Dimensions: 5-5/8 in Dia
• Shaft Size: 1/2 in Dia x 3-3/4 in L
• Package Weight: 14.0 lb
• Country of Origin: MX
• Frequency Rating: 60 Hz
• Number of Speeds: 1
