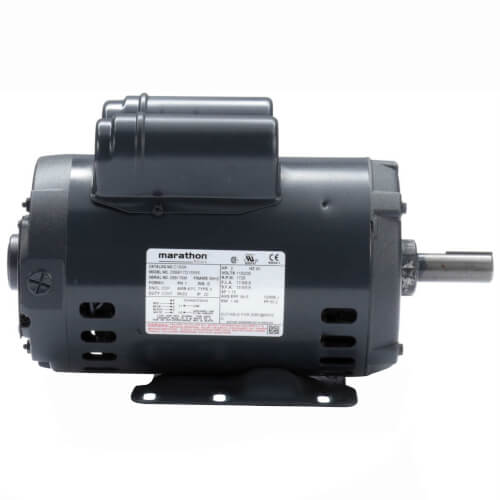

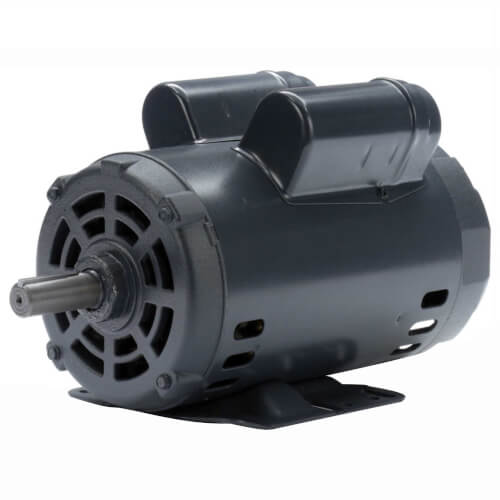

Marathon Motors C193A General Purpose Motor 2 HP 115-230V 1725 RPM

Product Description

The Marathon Motors C193A General Purpose Motor is a reliable choice for HVAC supplies. It provides a power of 2 HP and operates at 115-230V with a speed of 1725 RPM.

• Heavy gauge steel frame and base
• Capacitor start/capacitor run design
• Energy saver motor

Product Highlights

This motor is suitable for various HVAC applications. It features a shaft extension of 2.25 inches long by 0.875 inches diameter. The motor is designed for continuous duty and has a reversible rotation.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: C193A
• Use: General Purpose Motor

Technical Specifications

• Frame: 56HZ
• Phase: 1
• Poles: 4
• Voltage: 115/230V
• Amperage: 8.8, 17.6
• Bearings: Ball
• Rotation: Reversible
• Horse Power: 2
• Enclosure Type: Open Drip Proof
• Insulation Class: B
• Motor Orientation: Horizontal
• Overload Protection: None
• Max Ambient Temp: 104 degrees Fahrenheit
