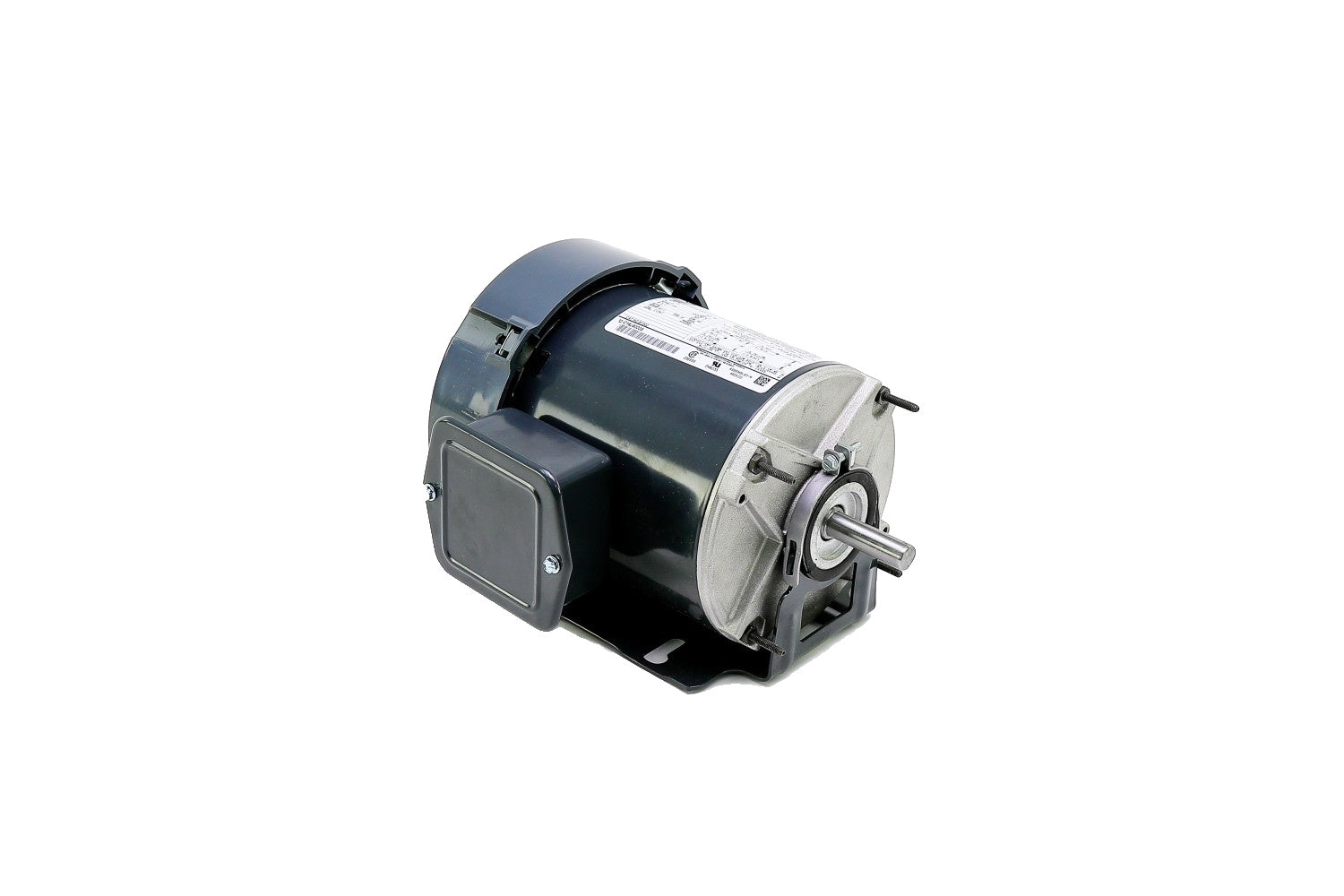

Marathon Electric Motors B1502 | 105502988 1/4 hp 1725 RPM TEFC 48 Frame

Product Description

The Marathon Electric Motors B1502 is a reliable AC motor with a rating of one quarter horsepower and a speed of one thousand seven hundred twenty-five revolutions per minute. This model is suitable for fan and blower applications.

• Single Phase operation
• TEFC enclosure for protection against dust and moisture
• Resilient base mounting for stability

Product Highlights

This AC motor is designed for efficiency and durability, making it ideal for various HVAC applications. It features a compact design, a totally enclosed fan-cooled enclosure, and a voltage rating of one hundred fifteen.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• MPN: B1502

Technical Specifications

• Enclosure: TEFC
• Full Load Amps: 5.1
• Phase: Single Phase
• Mounting: Resilient Base
• Rotation: CW/CCW
• Open End Bearing: 6203
• Hz: 60
• Drive End Bearing: 6203
• Voltage Rating: 115
• Insulation: B
• Enclosure Designation: Totally Enclosed Fan Cooled
• Frame: 48
• Motor Application: Fan & Blower
• Poles: 4
• Service Factor: 1
• Weight: 17.0 LB
• EAN or UPC: 722856040398
