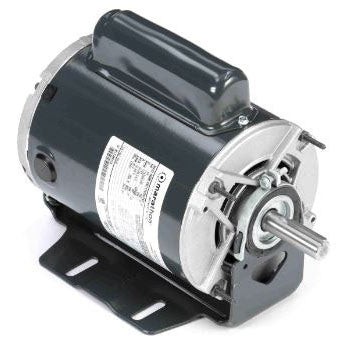

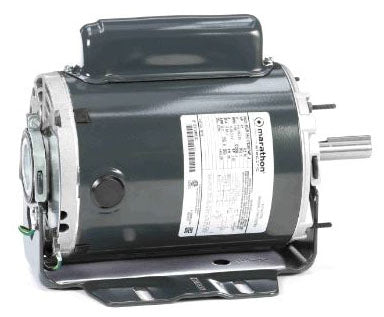

Regal Rexnord - Marathon B319 Fan & Blower Motor 3/4 HP 115/208-230V 1725 RPM

Product Description

The Regal Rexnord - Marathon B319 is a 3/4 horsepower fan and blower motor designed for industrial use. It operates within a voltage range of one hundred fifteen to two hundred thirty volts AC, delivering a consistent speed of seventeen hundred twenty-five RPM. This motor is suitable for various applications including HVAC systems, conveyors, and material handling equipment.

• Power rating of 3/4 HP
• Open drip-proof enclosure
• Capacitor-start induction run type

Product Highlights

This motor ensures reliable performance with efficiencies reaching over seventy percent. It features a thermal protection system and is constructed with durable materials to withstand harsh operating conditions.

Product Information

Standard Information

• Manufacturer: Regal Rexnord - Marathon
• Power Rating: 3/4 HP

Technical Specifications

• Voltage Rating: 115/208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Speed Rating: 1725 RPM
• Motor FLA: 10/5.2 to 5 Amp
• NEMA Frame Size: 56
• Insulation Class: B
• Weight: 22.55 Pounds
• Bearing Type: Ball (Drive End/Opposite Drive End)
• Shaft Type: T
• Orientation: Horizontal
• Mounting: Resilient Base, Extended Stud
