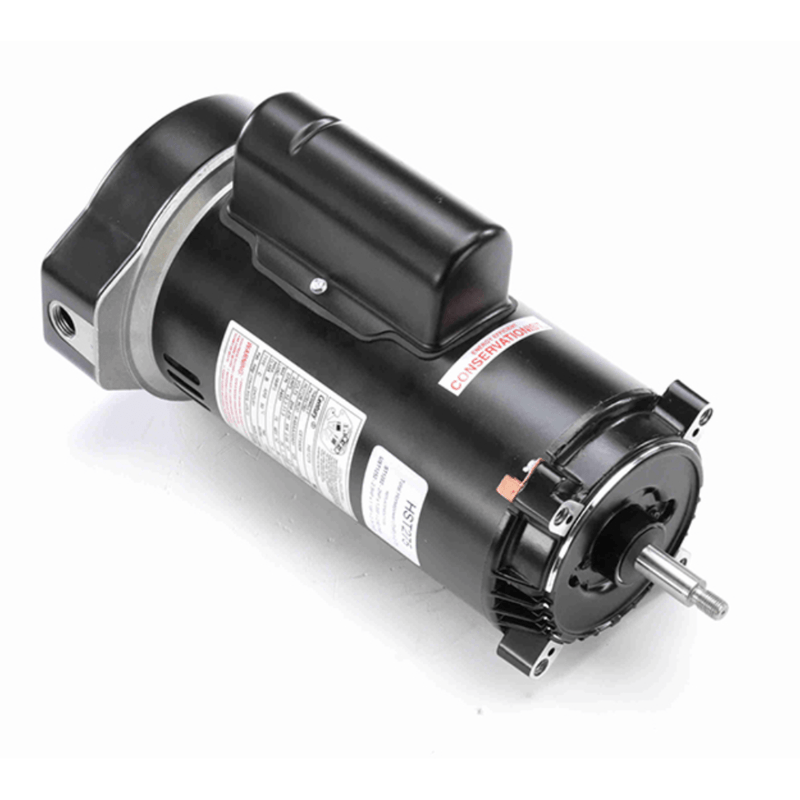

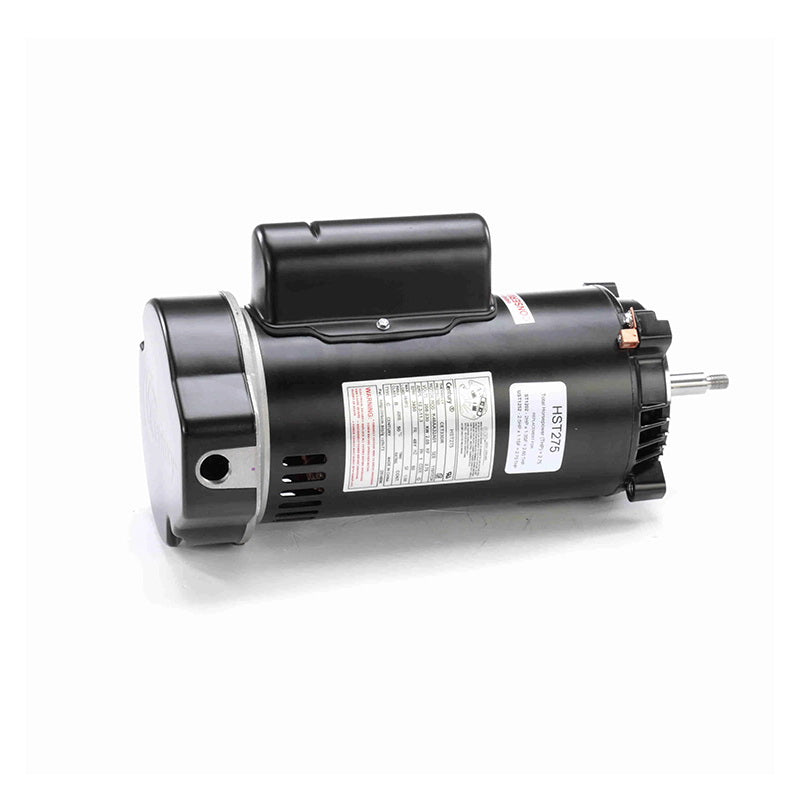

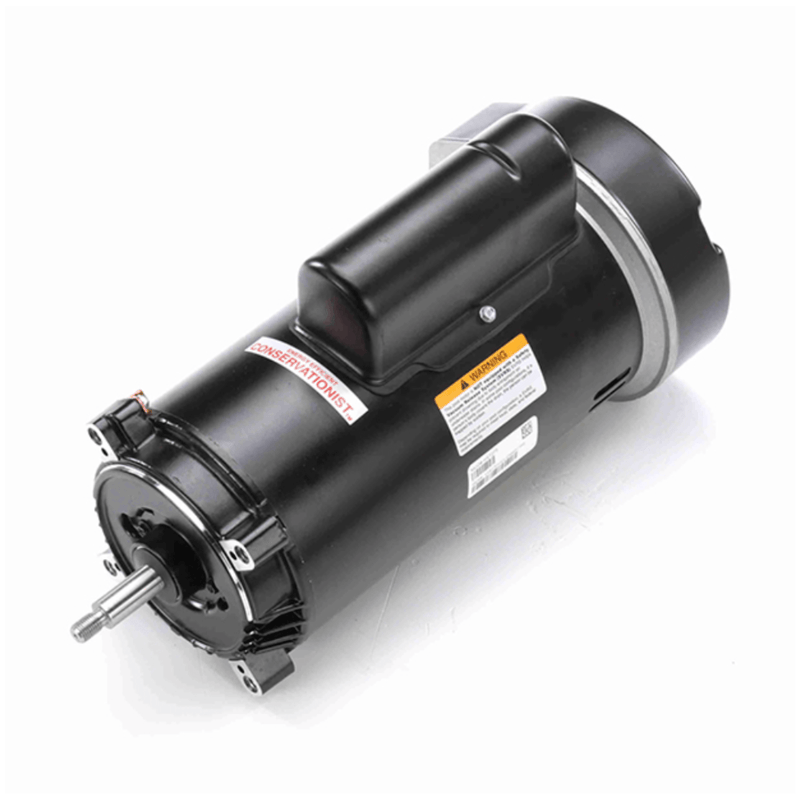

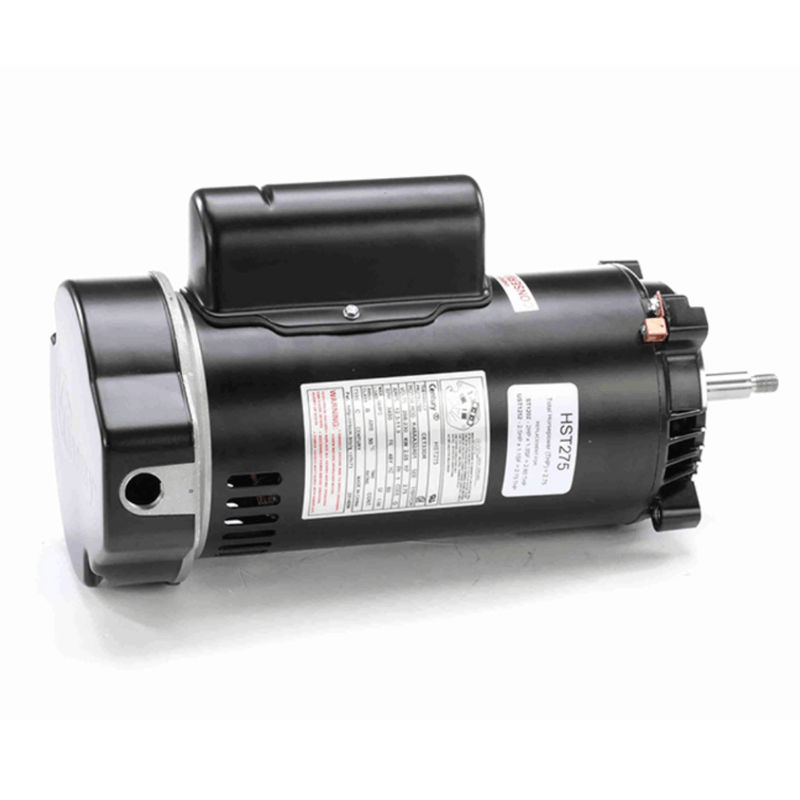

Regal Beloit HST275 Pool & Spa Pump Motor 2.75 HP

Product Description

The Regal Beloit HST275 is a Century Centurion Pro pool and spa pump motor operating at 2.75 HP and 3450 RPM. Designed for 208-230V power input, it features a 56J frame and a threaded shaft. Suitable for pool applications, it ensures efficient and reliable performance.

• Professional grade motor designed for pool and spa pumps
• Features a hybrid end frame and PCB terminal board for easy wiring
• Equipped with voltage change plug to prevent mis-wiring

Product Highlights

Durable Regal Beloit motor with open dripproof enclosure, automatic thermal protection, and sealed ball bearings.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: HST275

Technical Specifications

• Voltage Rating: 208-230 V
• Duty Cycle: Continuous
• Motor Design: Capacitor Start/Run
• Frame: 56J
• Full Load Amps: 12.3-11.3 A
• Service Factor: 1.00
• Brand: Regal Beloit
• Sub Brand: Century®
• Standards Approvals: UL Approved, CSA Certified
• Ambient Temperature: 50 deg C
• RPM: 3450
• Shaft Design: Threaded
• Motor Shaft Rotation: CCWPE
• Phase: 1-Phase
• Shaft Material: 303 Stainless Steel
• Mounting Type: C-Face
• Insulation Class: B
• HP: 2.75
• Type: K
• Shaft Diameter: 5/8 Inch
• Frequency Rating: 60 Hz
• Number of Speed: 1-Speed
• Overall Length: 11.84 Inch
• Diameter: 6-1/2 Inch
• Motor Thermal Protection: Auto
• Bearing Type: Sealed Ball
• Enclosure Design: Open Dripproof
• Application: Pool
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Motor Capacitor Type: Start,Run
