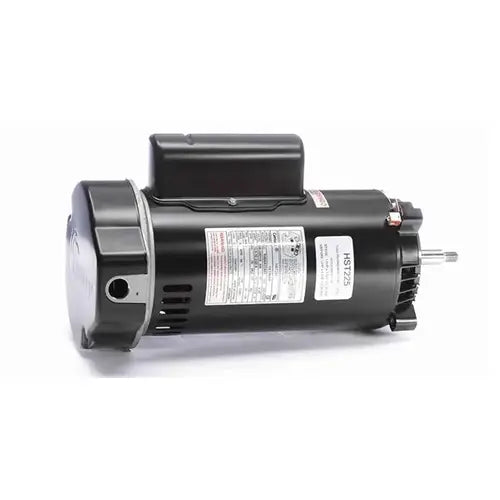

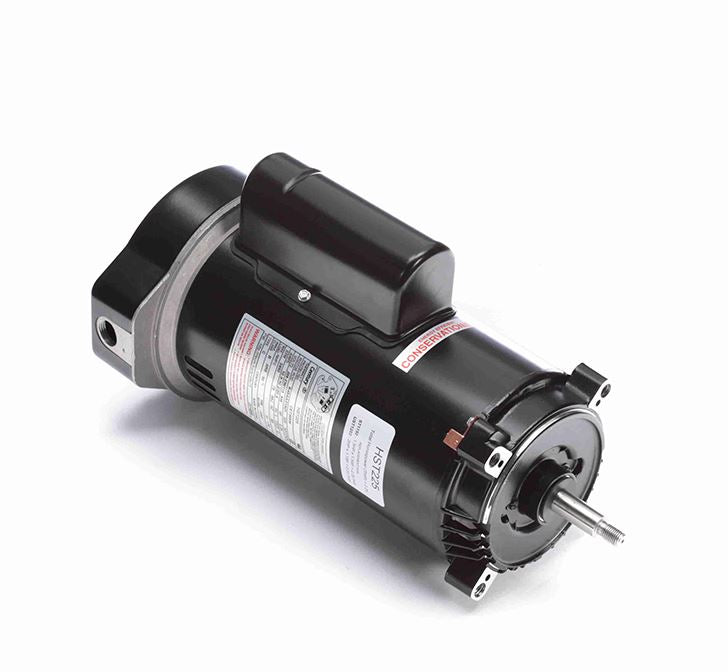

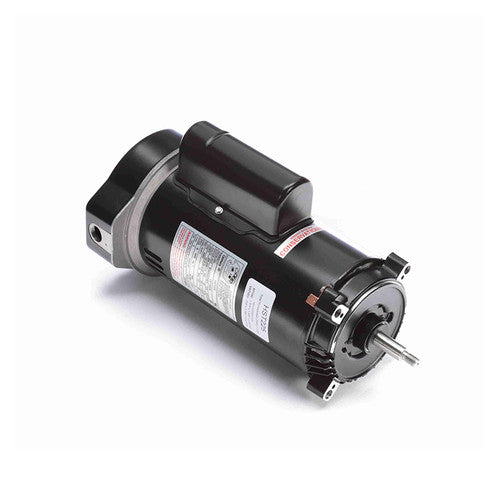

Regal Beloit HST225 Century 1-Speed Pump Motor 2.25 HP

Product Description

The REGAL BELOIT HST225 Century Centurion Pro pool and spa pump motor is a 1-speed motor with 2.25 HP and 3450 RPM. Designed for durability and user-friendliness, it features a hybrid end frame with a PCB terminal board and a voltage change device. The motor has a definitive shaft access path for easy installation and service. It operates at 115/208-230 V.

• Professional grade
• Features a hybrid end frame design with unique BX hole placement and a new terminal board for easy wiring access.
• Incorporates a voltage change plug to virtually eliminate mis-wiring errors.

Product Highlights

Durable, installer-friendly pump motor with innovative features for easy installation and reliable performance in pool and spa systems.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: HST225
• Country of Origin: United States

Technical Specifications

• Ambient Temperature: 50 deg C
• Bearing Type: Sealed Ball
• Brand: Regal Beloit
• Diameter: 6-1/2 Inch
• Duty Cycle: Continuous
• Enclosure Design: Open Dripproof
• Frame: 56J
• Frequency Rating: 60 Hz
• Full Load Amps: 20.4/10.9-10.2 A
• HP: 2.25
• Insulation Class: B
• Item: Pool and Spa Pump Motor
• Motor Design: Capacitor Start/Run
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: C-Face
• Number of Speed: 1-Speed
• Overall Length: 11.84 Inch
• Phase: 1-Phase
• RPM: 3450
• Series: Centurion® Pro
• Service Factor: 1.00
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL Approved, CSA Certified
• Sub Brand: Century®
• Type: K
• Voltage Rating: 115/208-230 V
• Manufacturer: Regal Beloit America
