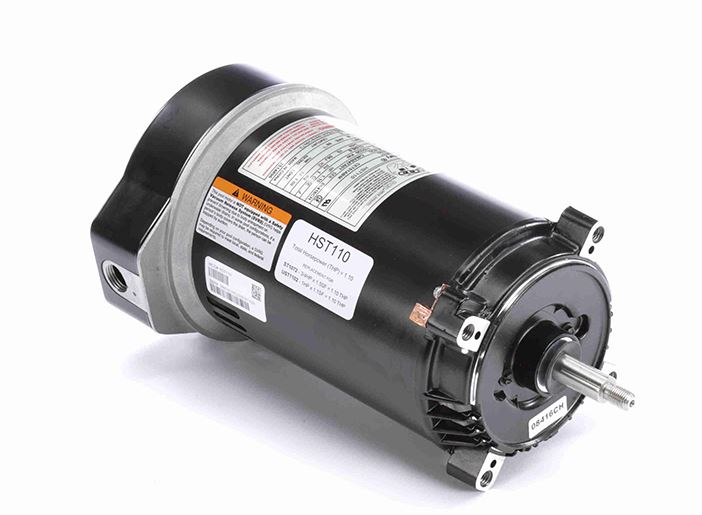

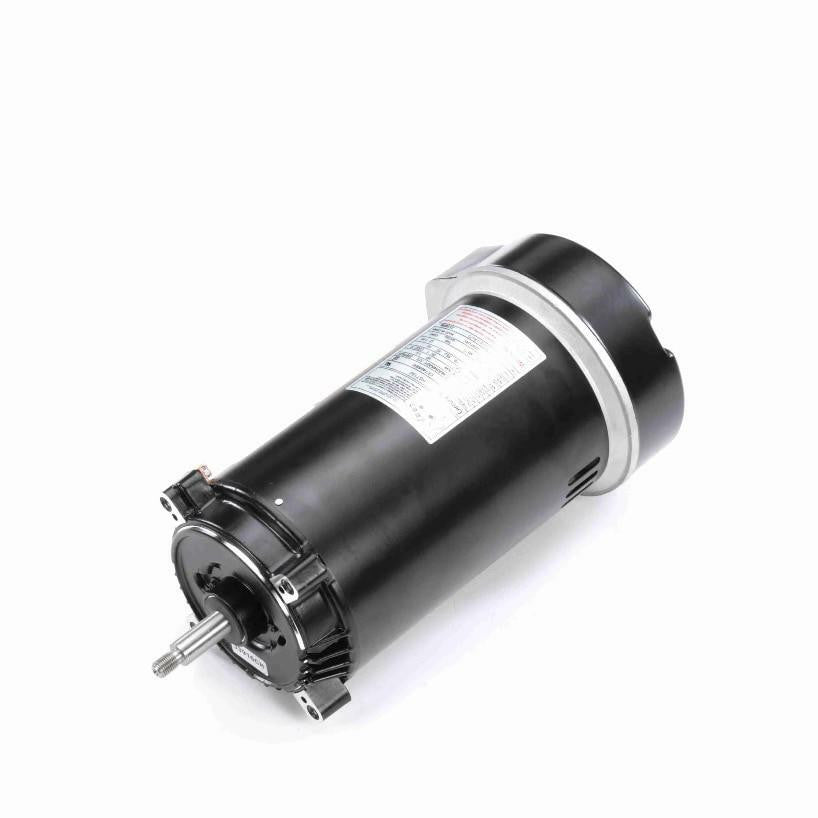

Regal Beloit HST110 Century Centurion PRO Pool Pump Motor 1.10 HP 56J Frame

Product Description

The REGAL BELOIT HST110 is a Century Centurion PRO pool pump motor with 1.10 horsepower and a 56J frame. Designed for optimal performance and efficiency in pool and spa systems, this motor delivers robust water circulation. It operates at 230/115V and 3450 RPM with an open drip-proof enclosure.

• Features premium sealed 203 bearings on both ends.
• Includes an open and accessible terminal board for easy installation.
• Offers voltage change device.

Product Highlights

This motor is designed for easy installation and optimal performance, ensuring efficient water circulation in pool and spa applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: HST110
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1.10 Hp
• Output KW: 0.82 kW
• Voltage: 230/115 V
• Speed: 3450 rpm
• Service Factor: 1
• Frame: 56J
• Enclosure: Open Drip Proof
• Thermal Protection: Automatic
• Ambient Temperature: 50 deg C
• Frequency: 60 Hz
• Current: 6.8/13.6 A
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Capacitor Start Induction Run
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting Type: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 7/16 Threaded
• Overall Length: 13.28 in
• Frame Length: 7.25 in
• Shaft Diameter: 0.625 inch
• Shaft Extension: 2.562 in
• THP (Total Horsepower): 1.10
• Manufacturer: Regal Beloit America
• Motor Design: Capacitor Start
• Full Load Amps: 13.6/6.8 A
• Standards Approvals: UL Approved, UL Recognized (E20522), CSA Certified (LR43341)
• Shaft Material: 303 Stainless Steel
• Motor Shaft Rotation: CCWPE
• Thrust Horsepower: 1.1
• Type: C
• Motor Thermal Protection: Auto
• Bearing Type: Sealed Ball
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• RPMs Min: 3450
• RPMs Max: 3450
• Frequency Rating (Hz): 60
• Shaft Design: 7/6 Threaded
