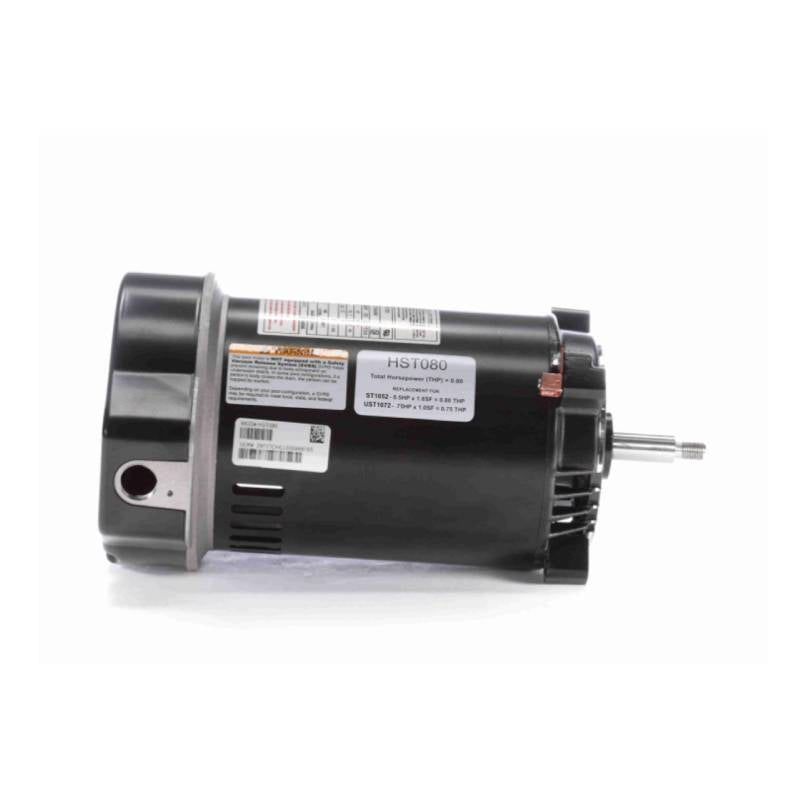

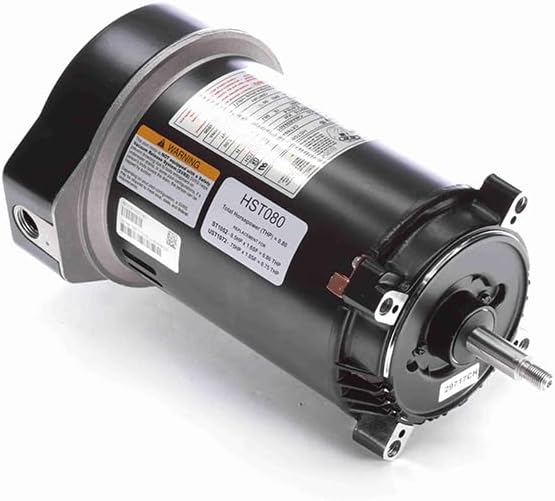

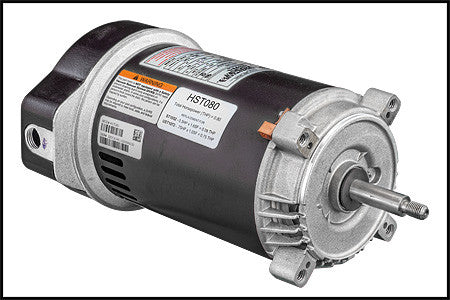

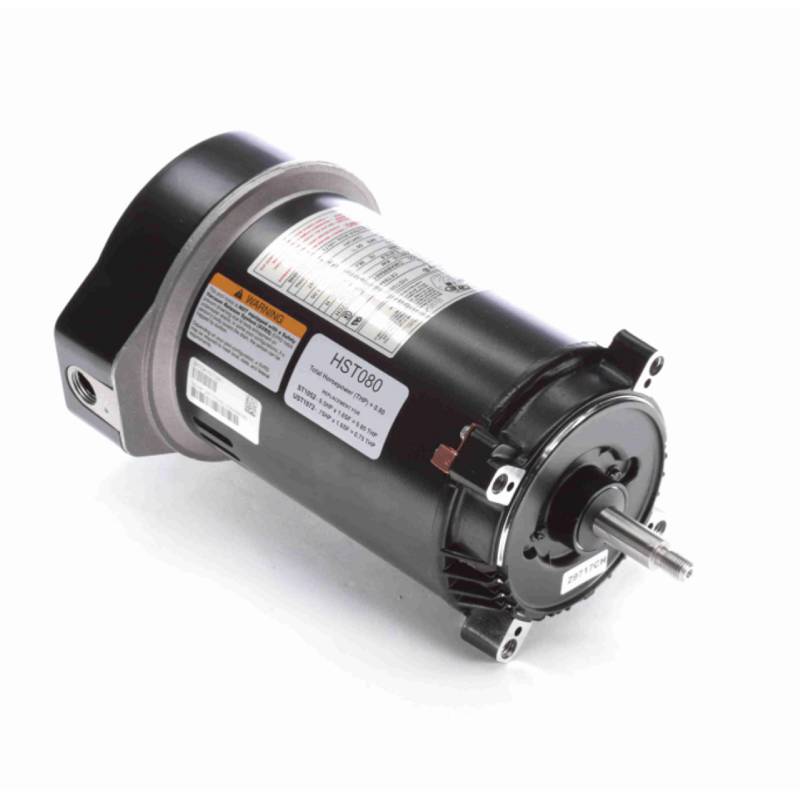

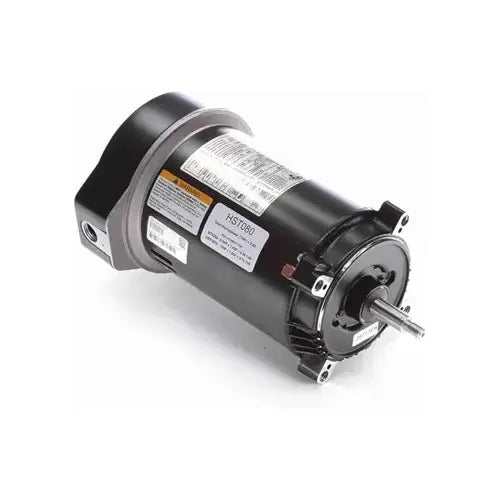

Regal Beloit HST080 Centurion Pro Motor 0.80 THP C-Face Flange

Product Description

The Regal Beloit HST080 Centurion Pro Motor is a 0.80 THP motor with a C-Face Flange. Designed for various applications, particularly in pool and spa systems. It delivers reliable performance for water circulation. Features premium sealed 203 bearings at both ends for long-lasting operation. The 56J frame with a threaded shaft ensures compatibility with various pump models.

• Fast and easy installation
• Designed for optimal performance and efficiency
• Premium sealed 203 bearings at both ends

Product Highlights

The HST080 motor is designed for durability and efficient performance in residential applications.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: HST080

Technical Specifications

• Brand: Regal Beloit
• Speed: 3450 RPM
• Material: Stainless Steel
• THP (Total Horsepower): .80
• Frame: 56J
• Ambient Temperature: 50 deg C
• Bearing Type: Sealed Ball
• Diameter: 6-1/2 Inch
• Duty Cycle: Continuous
• Enclosure Design: Open Dripproof
• Frequency Rating: 60 Hz
• Full Load Amps: 10.8/5.4 A
• HP: 0.8
• Insulation Class: B
• Item: Pool and Spa Pump Motor
• Motor Design: Capacitor Start
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: C-Face
• Number of Speed: 1-Speed
• Overall Length: 11.84 Inch
• Phase: 1-Phase
• RPM: 3450
• Series: Centurion® Pro
• Service Factor: 1.00
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL Approved, CSA Certified
• Sub Brand: Century®
• Thrust Horsepower: 0.8
• Type: C
• Voltage Rating: 115/230 V
