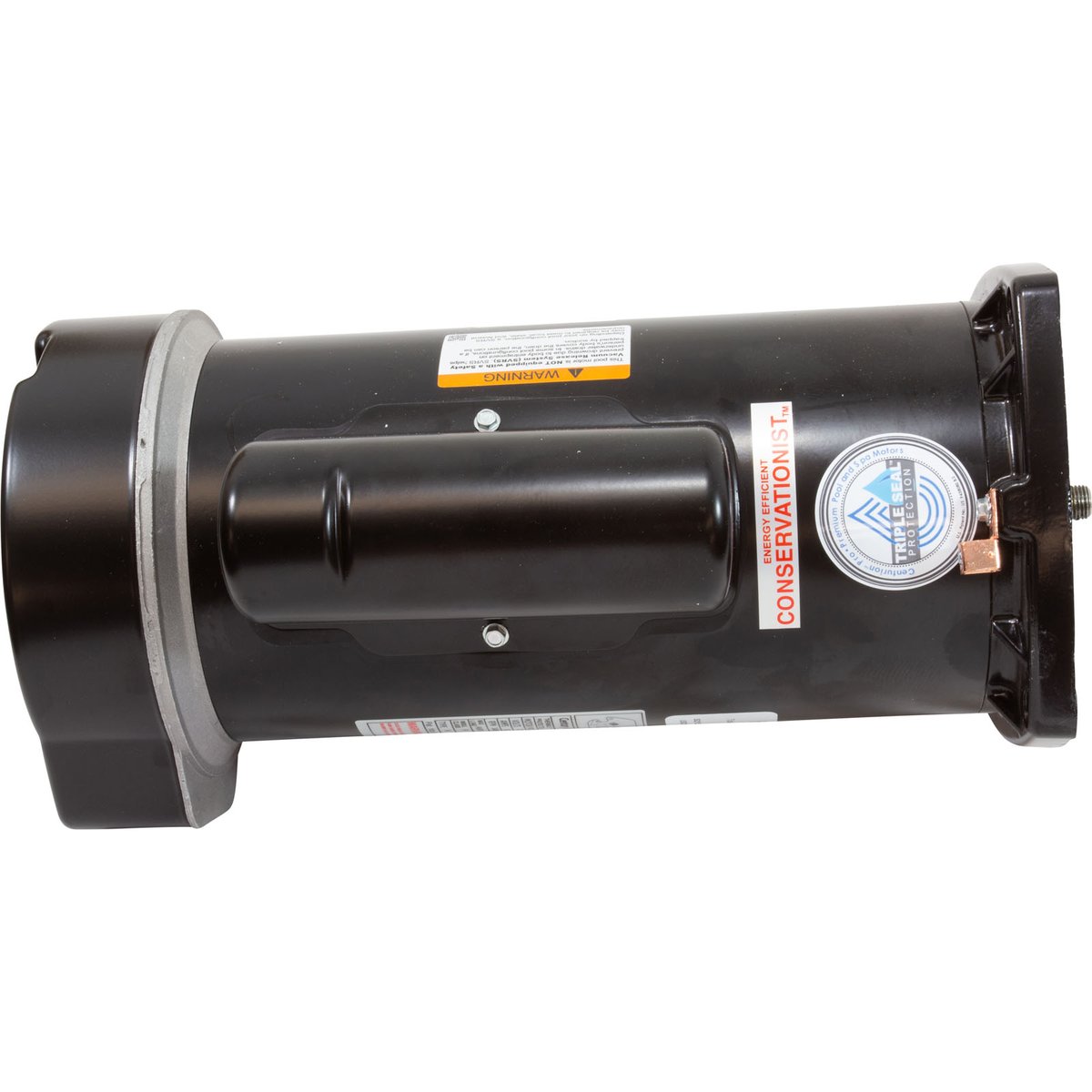

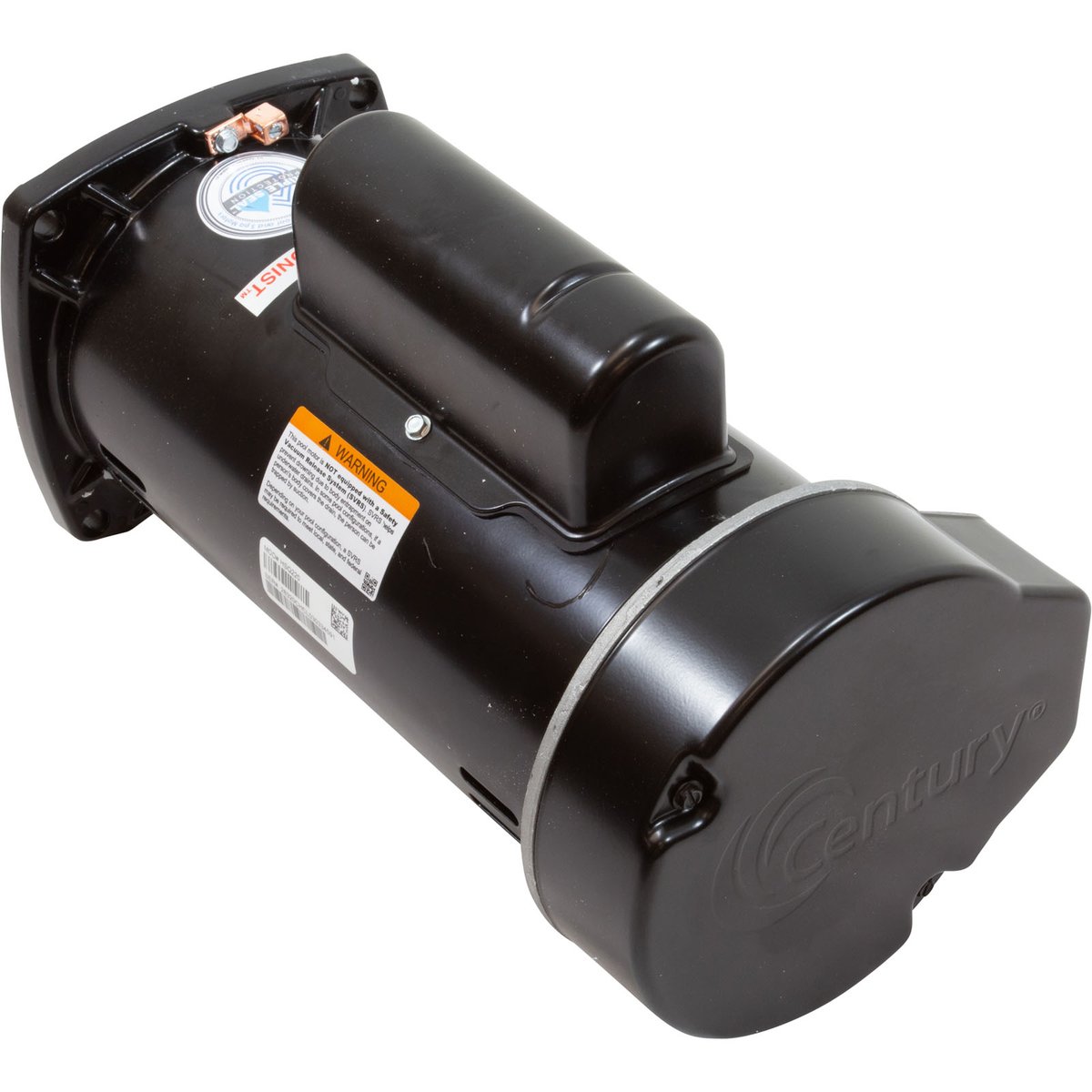

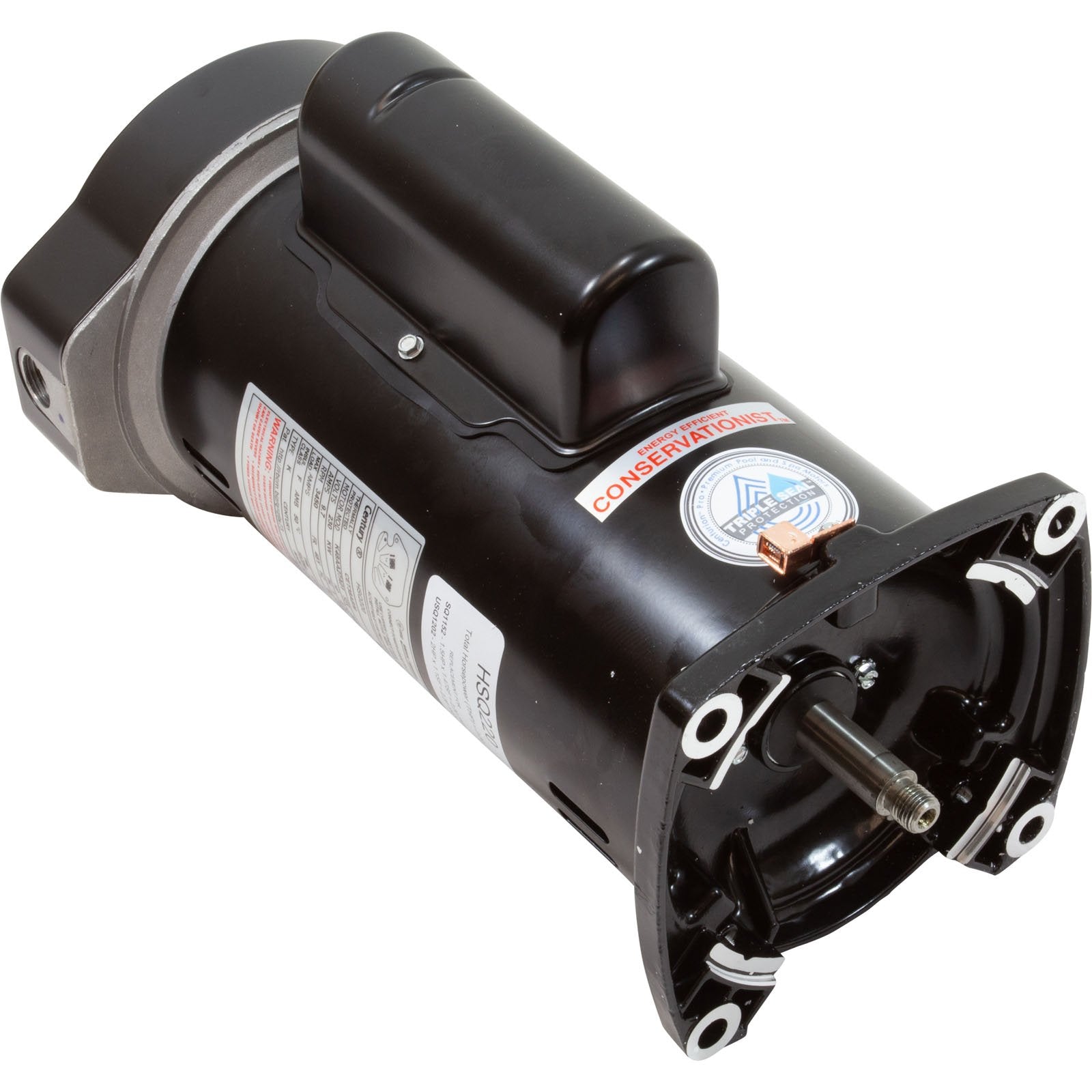

Regal Beloit HSQ220 Pump Motor 2.2 HP

Product Description

The Regal Beloit HSQ220 is a 2.2 HP flanged pump motor designed for pool and spa systems. This single-speed motor ensures efficient water circulation. It features a 48Y frame with a square flange for broad compatibility. Designed for durability and performance in residential applications.

• Single Speed
• Threaded Shaft
• Open Drip Proof Enclosure

Product Highlights

Durable and efficient, this motor is designed for easy installation and reliable performance in pool and spa systems.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: HSQ220

Technical Specifications

• Motor Type: Pool
• Motor Amperage: 9.7A
• Voltage: 230 V
• Frame Type: 48Y
• Speed: 1 Speed (1-Spd)
• Horsepower: 2.20 HP
• Motor Shaft Type: Threaded

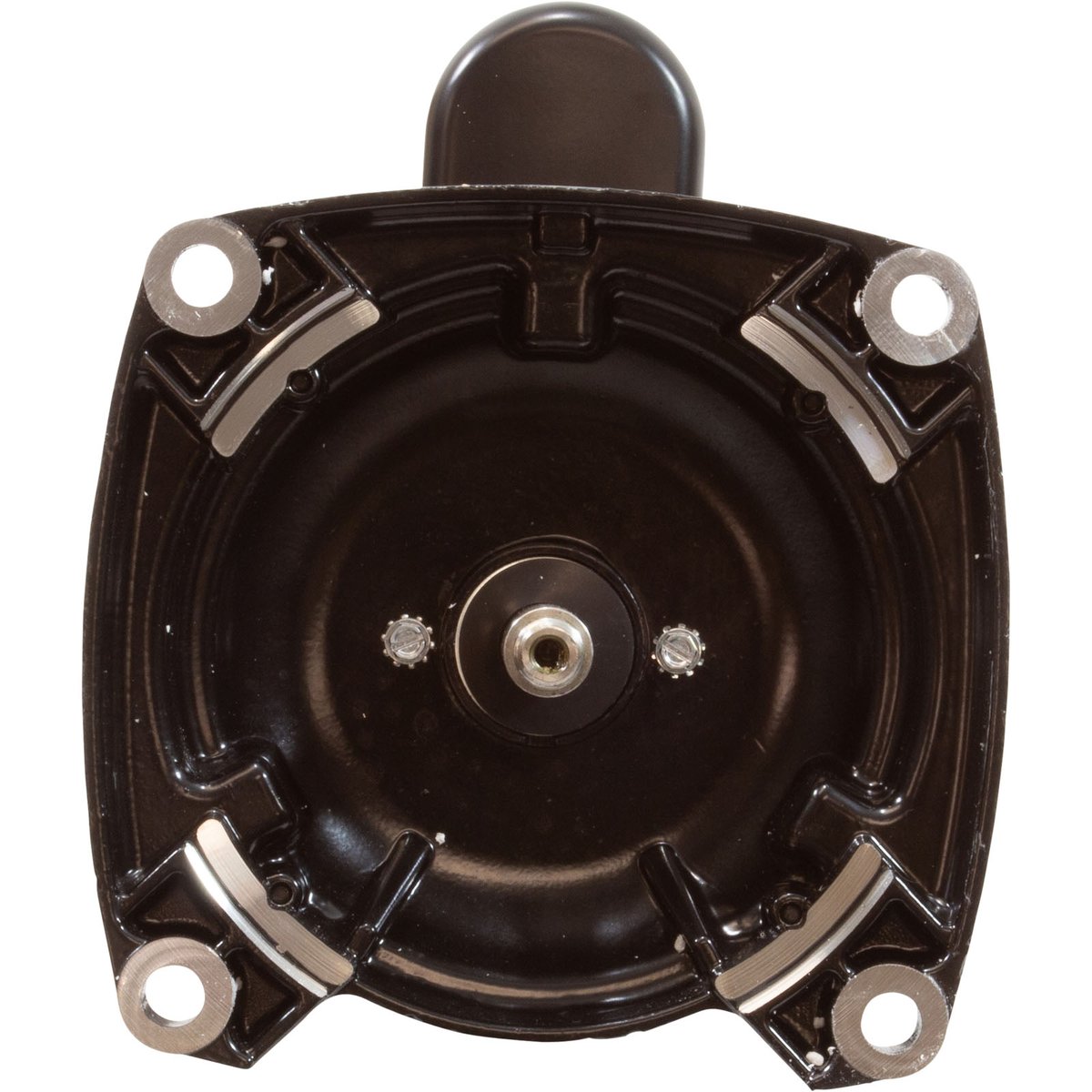

• Motor Style: Square Flange
• Capacitor On Top: Yes
• Manufacturer: AO Smith/Century/Regal Beloit
• Max Amps: 10.4
• VoltageRating: 230 V
• DutyCycle: Continuous
• MotorDesign: Capacitor Start/Run
• FullLoadAmps: 9.7 A
• ServiceFactor: 1.00
• Brand: Regal Beloit
• SubBrand: Century®
• AmbientTemperature: 50 deg C
• RPM: 3450
• ShaftDesign: Threaded
• MotorShaftRotation: CCWPE
• Phase: 1-Phase
• ShaftMaterial: 303 Stainless Steel
• InsulationClass: B
• ThrustHorsepower: 2.2
• Type: K
• ShaftDiameter: 1/2 Inch
• FrequencyRating: 60 Hz
• NumberofSpeed: 1-Speed
• OverallLength: 12.03 Inch
• Diameter: 5-5/8 Inch
• Item: Pool and Spa Pump Motor
• MotorThermalProtection: Auto
• Bearing Type: Sealed Ball
• EnclosureDesign: Open Dripproof
• FlangeType: Square
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Motor Frame Size: 48Y
• Motor Capacitor Type: Start,Run
• RPMs Min: 3450
• RPMs Max: 3450
• Amps Low Speed: 9.7
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 9.7
• Motor Thermal Protection: Automatic Reset
• Fountain, pond & pool pump type: In-Ground or Above Ground Pool Pump
• Volts: 230 V
