Regal Beloit HSQ1152 Century 1.5HP Threaded Shaft Motor SPX3215Z1BE

Product Description

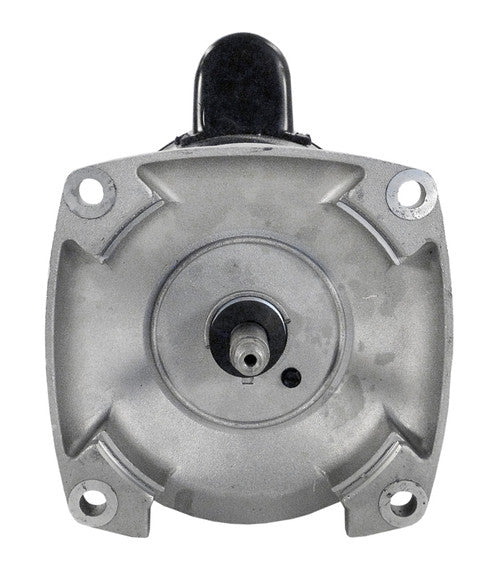

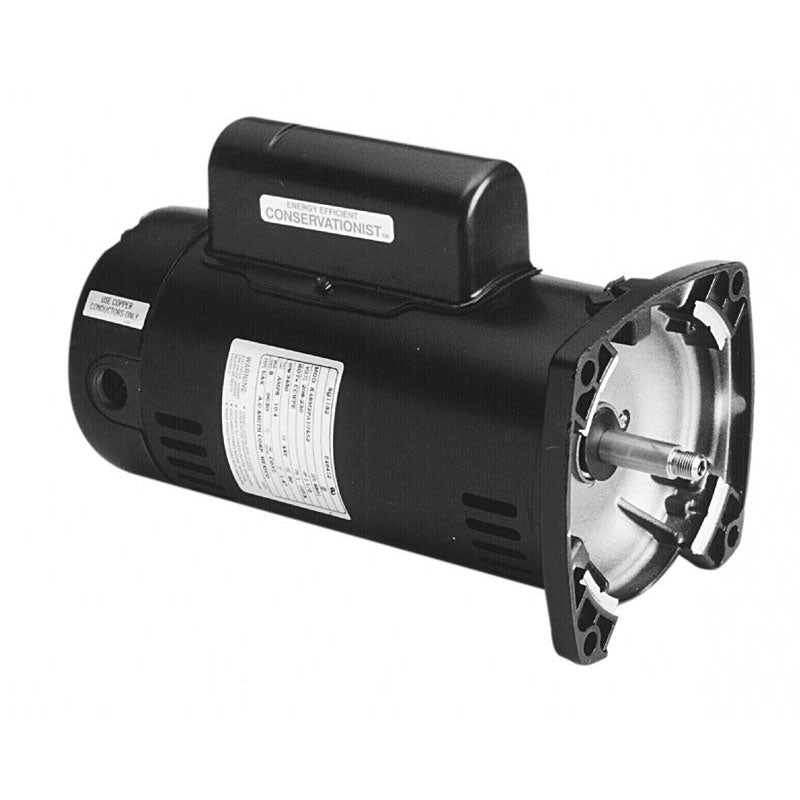

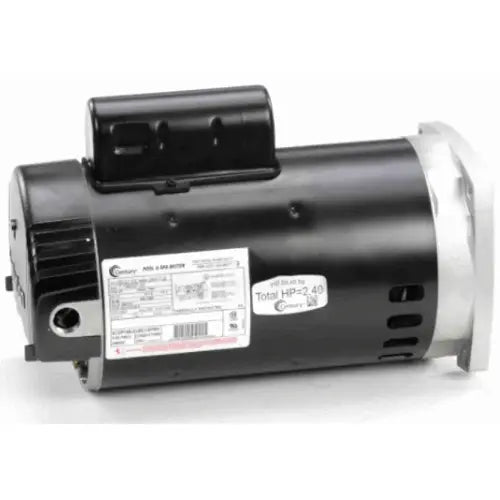

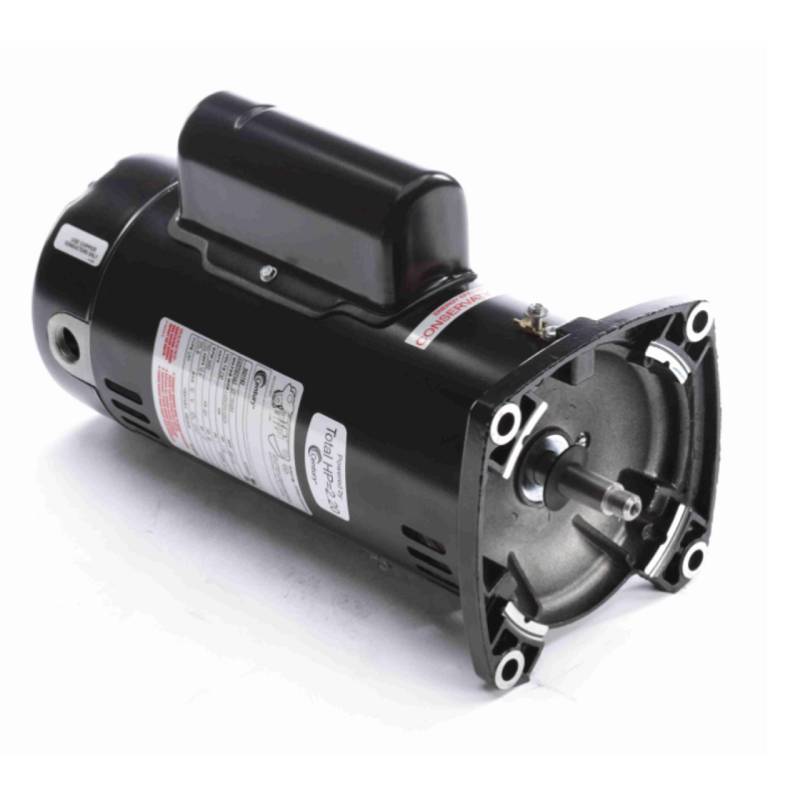

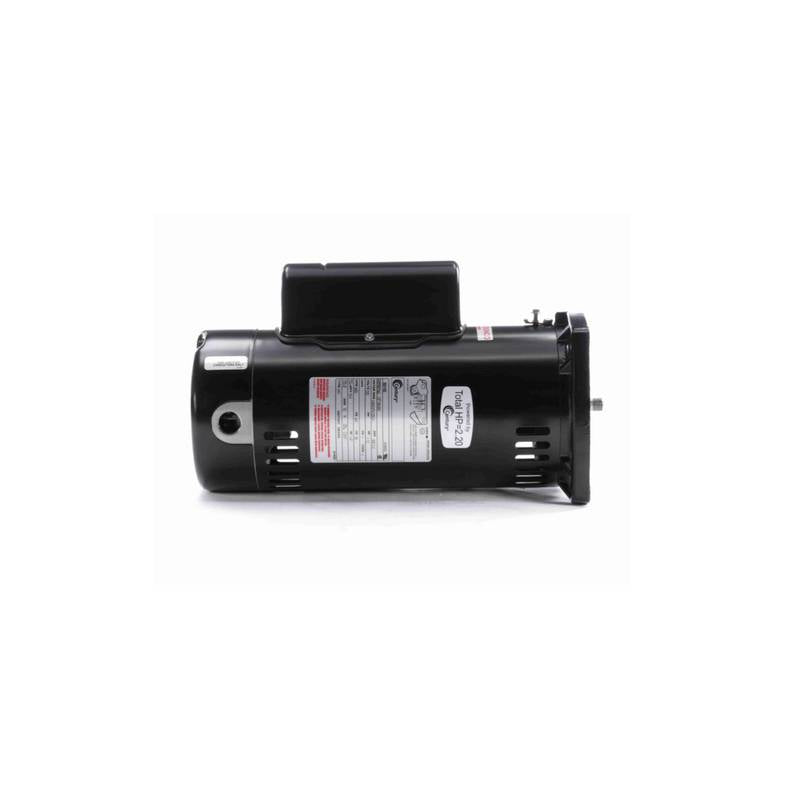

The Regal Beloit HSQ1152 Century 1.5HP Threaded Shaft Motor is designed for various applications, especially pool and spa systems. This motor features a 1.5 horsepower rating, ensuring efficient water circulation. Built for durability, it withstands pool and spa environments, offering long-lasting performance. It is a full-rated replacement motor with a square flange design and easy wiring access.

• High-quality, super efficient replacement motor.
• Sealed Ball Bearings, Capacitor Start
• Corrosion-resistant outer shell
• Easy wiring access

Product Highlights

This 1.5 HP motor operates at 115/208-230V, 3450 RPM, and has a 56Y frame. Features include a stainless steel threaded shaft and open dripproof enclosure.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: HSQ1152
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Regal Beloit America
• Category: Pool Pump Parts
• Product Category: Pump Motors
• Poolweb Item #: HSQ1152
• Cross Reference #: SPX3215Z1BE, SPX3215X20Z1BE
• Voltage: 120/208-230V
• Ambient Temperature: 60 deg C
• Application: Hayward TriStar™ Pumps
• Bearing Type: Ball
• Brand: Regal Beloit
• Diameter: 6-1/2 Inch
• Duty Cycle: Continuous
• Efficiency Group: High
• Enclosure Design: Open Dripproof
• Finish Color: Black
• Flange Material: Aluminum
• Flange Type: Square
• Frame: 56Y
• Frequency Rating: 60 Hz
• Full Load Amps: 20.0/12.0-10.0 A
• HP: 1.5
• Insulation Class: F
• Item: Replacement Pool and Spa Pump Motor
• Motor Design: Capacitor Start/Run
• Motor Shaft Rotation: CCWSE
• Motor Thermal Protection: Auto
• Mounting Type: C-Face
• Overall Length: 13.80 Inch
• Phase: 1-Phase
• RPM: 3450
• Service Factor: 1.60
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Length: 3/4 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR642)
• Sub Brand: Century®
• Thrust Horsepower: 2.4
• Type: Full-Rated, CP
• Output HP: 1.5 Hp
• Output KW: 1.1 kW
• Speed: 3450 rpm
• Thermal Protection: Thermally Protected
• Frequency: 60 Hz
• Current: 12.0-10.0/20.0 A
• UL: Recognized
• CSA: Y
• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Thread
• Frame Length: 9.38 in
• Shaft Extension: 0.91 in
