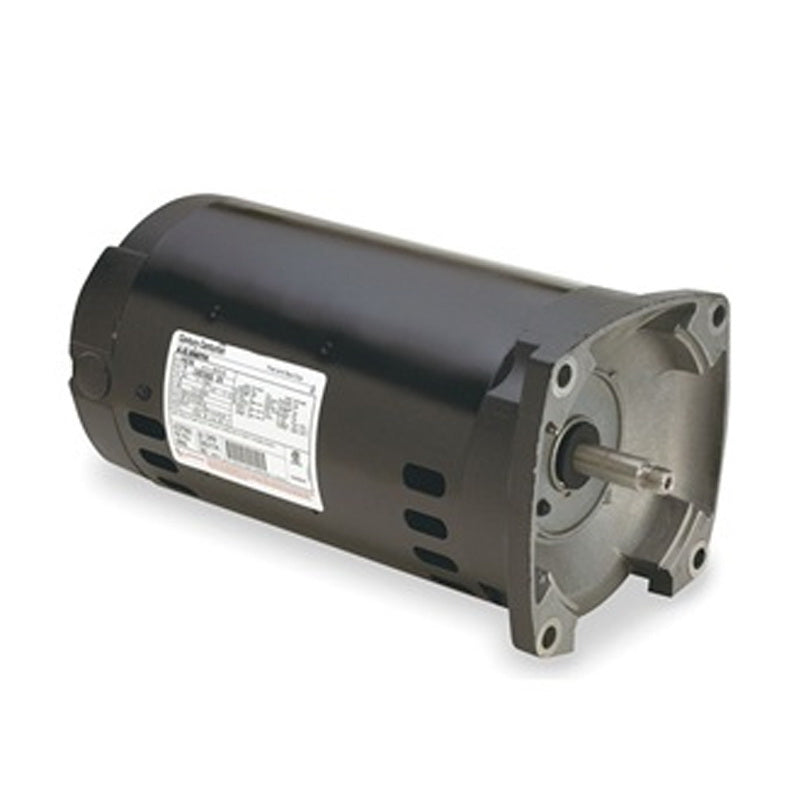

Regal Beloit H755 Pump Motor 3 HP 3PH Magnetek 208-230/460V

Product Description

The REGAL BELOIT H755 pump motor is a flanged 3 HP 3PH Magnetek motor designed for 208-230/460V power systems. It features a 56Y frame, continuous duty cycle, and operates at 60 Hz. Constructed with a steel frame and ball bearings, this motor is suitable for pump applications requiring a standard efficient motor design.

• 3 HP power output
• Designed for 208-230/460V 3-phase systems
• Open Dripproof enclosure for protection

Product Highlights

Reliable 3 HP motor for pump applications, featuring a robust design and efficient performance.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: H755

Technical Specifications

• Horsepower: 3 HP
• Frame: Y56Y
• Frequency: 60 HZ
• Voltage: 208-230/460 V
• Duty: Continuous
• Enclosure: OPEN DRIP PROOF
• Motor Bearings: Ball
• Motor Frame Material: Steel
• Insulation Class: B
• Full Load Amps: 9.8-9.6/4.8
• Max. Ambient Temp.: 50 Degrees C
• Motor Application: Pump
• Motor Design: 3-Phase
• Motor Efficiency Group: Standard Efficient
• RPM: 3450
• Service Factor: 1.15
• Shaft Diameter (in in.): 0.625 IN
• Shaft Extension: 0.91 IN
• Shaft Type: 1/2 Threaded
• UL: Recognized
• Width: 9.50
• Height: 11 IN
• Length Less Shaft: 13 in
• Motor Orientation: Horizontal
• Motor Type: 3PHASE
• Mounting: Round
• Number of Poles: 2
• Number of Speeds: 1
• Rotation: Reversible Counterclockwise
• Type of Overload Protector: No Protection
