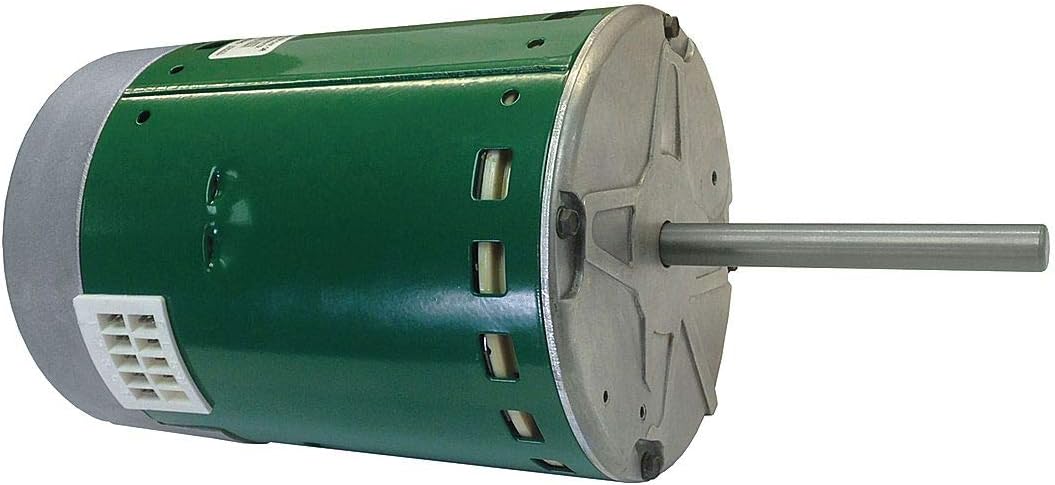

Genteq, Condenser, ECM, 3/4 HP, 1075 RPM – 5 Speed, 115 Volts, 8.4 Amps, 5.6 Motor Diameter, Shaft Dimension: 1/2 x 5, Enclosure: TEAO, Ball Bearing, Notes: Evergreen EM 6107E

Features:

• Genteq® - 6107E Evergreen® X13 Motor
• Standard ECM Replacement (Does not replace premium ECM constant airflow products such as Eon, 3.0, 2.3, and 2.5)
• Maintains ECM-level Efficiency up to 80%
• Soft Start and Off Ramp for quiet operation
• Alternate use for Commercial Building Series VAV Box and Packaged Heat Pump Retrofit/Upgrade Motor for a PSC system (Refer to Evergreen EM Instruction Manual)
• Encapsulated Electronics
• 4kV Surge Protection
• Electronic Overload Protection

Specifications:

• Ambient Temperature Range: 104°F (40°C)
• Amps: 8.4
• Bearing Type: Ball
• Brand: Genteq®
• CSA Listing: No
• Cycle/Hertz: 60 Hz
• Duty: Continuous Air Over
• Enclosure: Open Air Over
• Frame Material: Rolled Steel
• Full Load Amps: 8.4
• Insulation Class: B
• Motor HP: 3/4 HP
• Motor Type: ECM (Electronically Commutated Motor)
• Mounting: Round
• Mounting Type: Round
• NEMA Frame: 48
• Number of Bearings: 2
• Number of Poles: 12
• Number of Speeds: 5 (Five)
• Phase: Single
• Poles: Twelve
• Prop 65: No
• RPM: 1075
• Rotation: Reversible
• Service Factor: 1.0
• Shaft Diameter: 1/2"
• Shaft Length: 6.5"
• Thermal Protection: No
• UL Listed: No
• UL Recognized: Yes
• Voltage: 115: VAC
