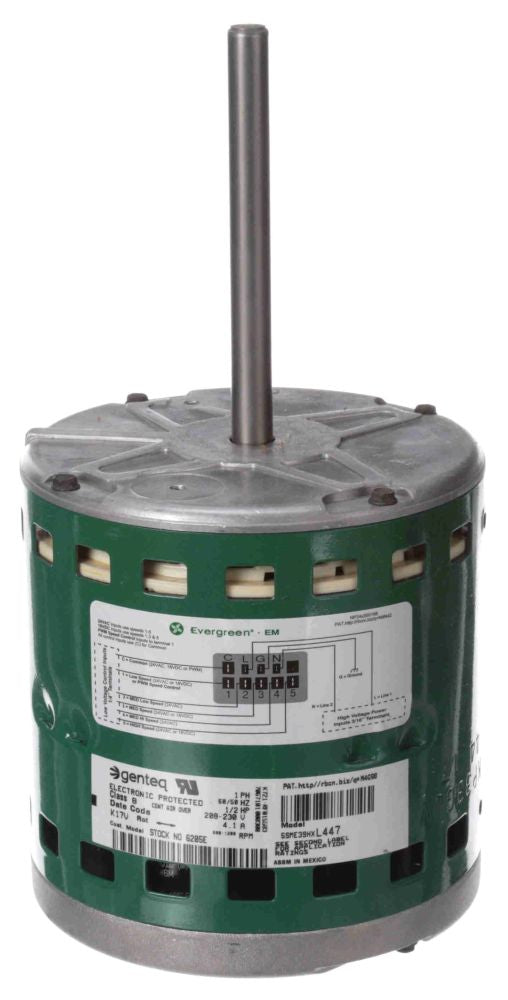

Genteq 6205E Evergreen 1/2 HP 208 to 230 VAC 60 Hz 5 Speed Blower Motor

Product Description

The Genteq 6205E is a 1/2 horsepower blower motor designed for HVAC applications. It operates at 208 to 230 VAC with a frequency of 60 Hz. This motor is a direct drive, electronically commutated motor (ECM) that ensures efficiency and reliability in various setups.

• Power Rating: 1/2 HP
• Speeds: 5
• Reversible Operation

Product Highlights

This motor is ideal for air handlers, package systems, and furnace applications. It features electronic thermal overload protection and operates in a range of conditions, making it suitable for both residential and light commercial environments.

Product Information

Standard Information

• Brand: Genteq
• MPN: 6205E

Technical Specifications

• Voltage Rating: 208 to 230 Volt AC
• Frequency Rating: 60 Hertz
• Motor Amperage: 4.1 Amp
• Speed Rating: 1075 RPM
• Frame Size: NEMA 48
• Efficiency: 80 Percent
• Weight: 13 Pounds
• Insulation Class: B
• Mounting Type: Round Frame
• Bearings: Ball (Drive End/Opposite Drive End)
• Ambient Temperature Rating: 40 Degrees C
• Service Factor: 1
• Approval: UL
