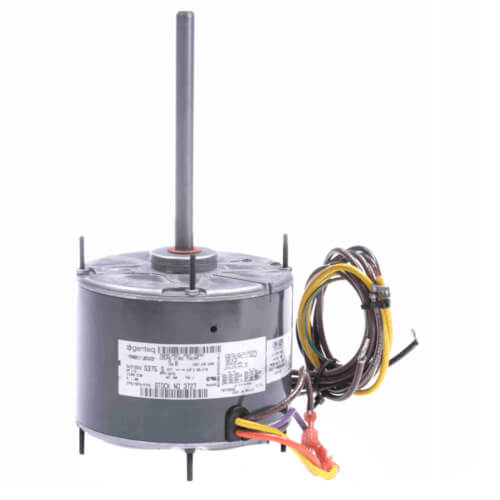

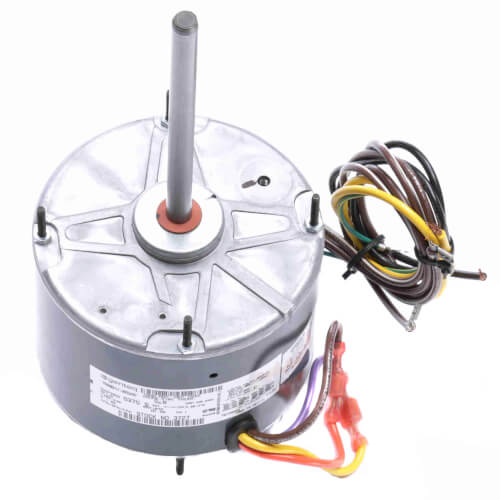

Genteq Motors 3727 1 Speed Condenser Fan & Heat Pump Motor w/ Shaft Up/Down 1/6 HP, 1075 RPM (208/230V)

Product Description

The Genteq Motors 3727 is a one-speed condenser fan and heat pump motor designed specifically for units that require vertical shaft up or down positioning. This motor accommodates installation with a belly band or extended clamp screw mounting. It operates at one-sixth horsepower and provides a speed of 1075 RPM with a voltage range of 208 to 230 volts.

• Permanent split capacitor design
• Standard efficiency with sleeve or ball bearings
• Includes mounting holes for capacitor bracket

Product Highlights

The Genteq Motors 3727 features a thermally protected overload system and is suitable for continuous air over duty. This motor ensures reliable performance in HVAC applications.

Product Information

Standard Information

• Brand: Genteq Motors
• MPN: 3727

Technical Specifications

• Horse Power: 1/6
• RPM: 1075
• Voltage: 208/230V
• Amperage: 1
• Frame Size: 48
• Type: Permanent Split Capacitor
• Bearings: Sleeve
• Rotation: Reversible
• Insulation Class: B
• Weight: 9.8 lbs
• Shipping Dimensions: 13.24 x 6.04 x 6.02 inches
• Approvals: CSA, UL
• Max Ambient Temperature: 104°F
