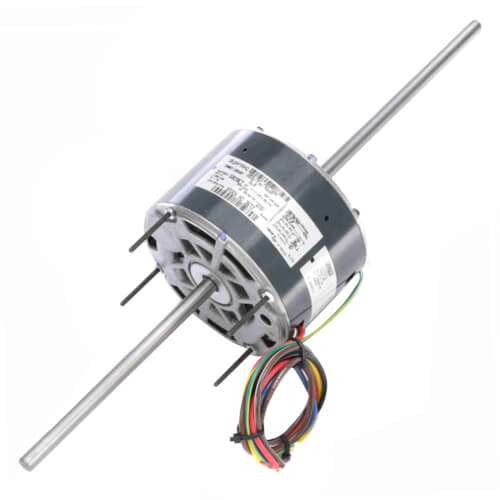

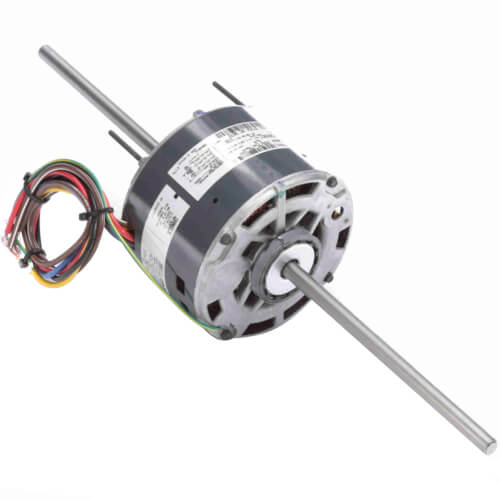

Genteq Motors 3672 3 Speed Direct Drive Fan and Blower Motor 1/4 HP 1075 RPM 208-230V

Product Description

The Genteq Motors 3672 3 Speed Direct Drive Fan and Blower Motor is designed for condenser fan and heat pump units. It supports vertical shaft up or down positioning with belly band or clamp screw mounts and is built for 370 Volt capacitors (not included).

• Permanent split capacitor
• Standard efficiency designs
• Sleeve or ball bearings

Product Highlights

This motor features mounting holes for a capacitor bracket, a water slinger on the shaft, and 26-inch motor leads.

Product Information

Standard Information

• Brand: Genteq Motors
• Category: Condenser Fan and Heat Pump Motors
• Part Type: Motor

Technical Specifications

• RPM: 1075
• Horse Power: 1/4
• Voltage: 208/230v
• Amperage: 1.7
• Rotation: Counter Clockwise (CCW)
• Speeds: 3
• Weight: 12.4 pounds
• Phase: 1
• Frame: 48
• Duty: Continuous Air Over
• Type: Permanent Split Capacitor
• Bearing Type: Sleeve
• Mount Type: Resilient Rings
• Insulation Class: A
• Overload Protection: Thermally
• Max Ambient Temp: 104 degrees Fahrenheit
• Shipping Dimensions: 21.62 inches (L) x 6.5 inches (W) x 6.38 inches (H)
