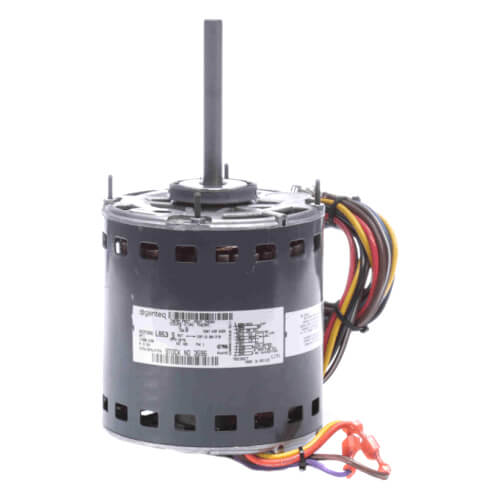

Genteq Motors 3596 5-1/2 2 Speed Direct Drive Furnace and Central AC Motor 1 HP 1075 RPM 208-230V

Product Description

The Genteq Motors 3596 is a 5-1/2 inch, 2-speed direct drive motor suitable for furnaces and central air conditioning units. It is designed for continuous air over applications with a single shaft requirement.

• Energy Saver Plus design
• Reversible rotation
• Automatic thermal overload protection

Product Highlights

This motor features mounting holes in the shell for a capacitor bracket and is designed for use with a 370-volt capacitor, which is not included. It also has a 4-inch shaft extension and includes a ring kit that allows for both 2-1/4 and 2-1/2 inch resilient ring mounting.

Product Information

Standard Information

• Brand: Genteq Motors
• MPN: 3596
• Category: Direct Drive Furnace Motors

Technical Specifications

• RPM: 1075
• Duty: Continuous Air Over
• Type: Permanent Split Capacitor
• Frame: 48
• Motor: Permanent Split Capacitor
• Mount: Resilient Rings
• Phase: 1
• Poles: 6
• Speeds: 3
• Voltage: 208/230v
• Amperage: 5.58
• Bearings: Ball
• Rotation: Reversible
• Horse Power: 1
• Enclosure Type: Open Air Over
• Insulation Class: B
• Overload Protection: Thermally
• Max Ambient Temp (°F): 104°F
