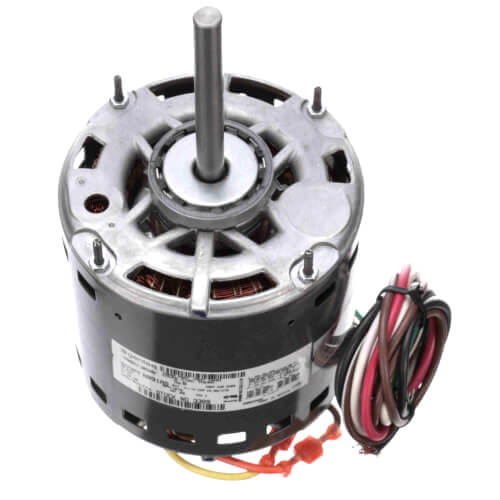

Genteq Motors 3390 5-1/2 2 Speed Direct Drive Furnace Motor 3/4 HP (208-230V)

Product Description

The Genteq Motors 3390 is a 5-1/2 inch 2 speed direct drive furnace motor with three-quarter horsepower and operates at one thousand seventy-five RPM, suitable for HVAC applications. This motor is ideal for continuous air over systems, including furnace blowers and central air handling units requiring single shaft design.

• Energy Saver Plus design
• Reversible rotation for flexibility
• Automatic thermal overload protection

Product Highlights

Designed for durability and efficiency, the motor supports 370 volt capacitor installation, though it is not included. It has mounting holes for easy capacitor bracket assembly and features extended clamp screws with a ring kit enabling resilient ring mounting.

Product Information

Standard Information

• Brand: Genteq Motors
• MPN: 3390

Technical Specifications

• Type: Permanent Split Capacitor
• Voltage: 208/230V
• Horsepower: 3/4
• RPM: 1075
• Amperage: 5.2
• Frame: 48
• Phase: 1
• Poles: 6
• Duty: Continuous Air Over
• Weight: 17.6 lbs
• Insulation Class: B
• Max Ambient Temp (°F): 104°F
• Overload Protection: Thermally
• Enclosure Type: Open Air Over
• Motor Orientation: Any
• Shipping Dimensions: 15 x 6.04 x 6.02 inches
• Approvals: UL, CSA
