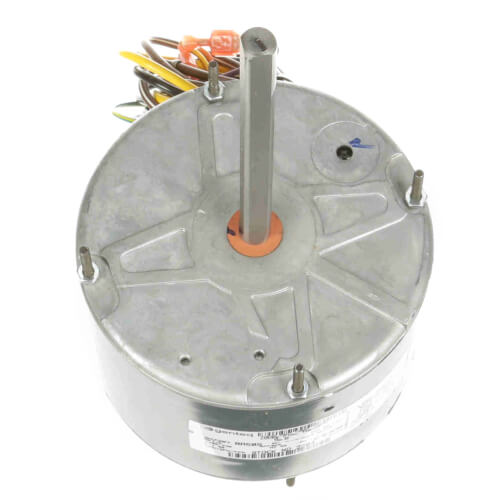

Genteq Motors 3203 5-5/8 PSC Reversible Condensor Fan Motor 1/6 HP (208/230V)

Product Description

The Genteq Motors 3203 is a five and five-eighths inch PSC reversible condenser fan motor designed for HVAC systems. This motor operates at one-sixth horsepower and has a speed of eight hundred twenty-five RPM. It is suitable for installations requiring vertical shaft positioning and features durable construction for long-term use.

• Permanent split capacitor design
• Single-phase operation
• Reversible rotation for versatility

Product Highlights

This motor is ideal for condenser fan and heat pump units, providing reliable performance and easy installation.

Product Information

Standard Information

• MPN: 3203
• Brand: Genteq Motors

Technical Specifications

• Horse Power: 1/6
• Voltage: 208/230V
• RPM: 825
• Weight: 10.2 lbs
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Bearings: Ball
• Frame: 48
• Max Ambient Temperature: 104°F
• Length: 11-5/8 inches
• Diameter: 5-5/8 inches
• Motor Orientation: Any
• Overload Protection: Thermally
