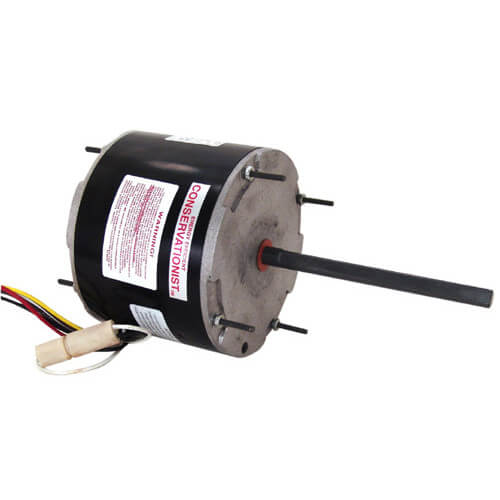

Regal Beloit FSE6000 Century FSE6000 Multi-Horsepower UF Condenser Fan AC Motor 1/3 to 1/6 hp

Product Description

The REGAL BELOIT FSE6000 Century FSE6000 is a multi-horsepower UF condenser fan AC motor operating between 208 to 230 VAC at 60 Hz. This motor features a NEMA 48Y frame and runs at speeds from 1075 to 1125 rpm. It is enclosed for protection and suitable for condenser fan motor applications.

• Energy efficient design
• Designed for 370 V capacitor (not furnished)
• Mounts by belly band, thru-bolts, or shell holes

Product Highlights

This motor is ideal for condenser fan applications, offering multiple mounting options and efficient performance.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: FSE6000
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 2.8 A
• Application Type: Condenser Fan Motors
• Bearing Type: Sleeve
• Enclosure Type: Enclosed
• Frame: NEMA 48Y
• Frequency Rating: 60 Hz
• Horsepower: 1/3 to 1/6 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 2
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 6 in L
• Speed: 1075 to 1125 rpm
• Temperature Rating: 60 deg C
• Type: Multi-Horsepower UF
• Voltage Rating: 208 to 230 VAC
• Output KW: 0.25 kW
• Thermal Protection: Automatic
• Ambient Temperature: 60 °C
• Duty: Air Over
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Mounting: Extended Studs
• Motor Orientation: Any
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 11.42 in
• Frame Length: 4.25 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6 in
