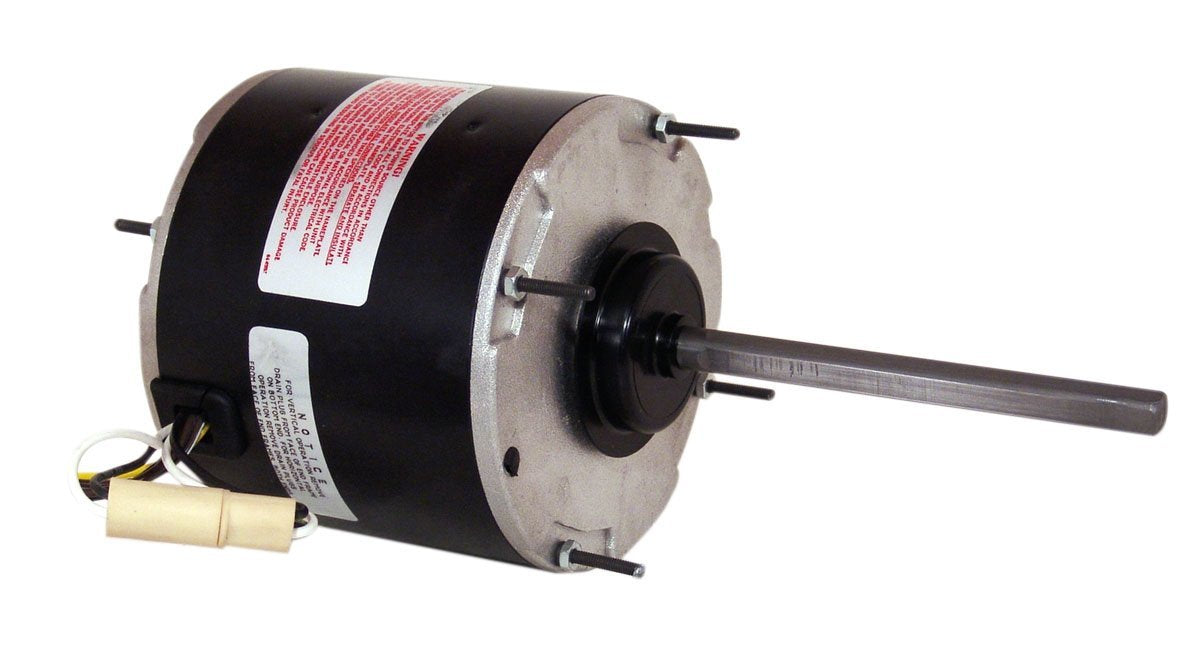

Regal Beloit FSE1076SV1 Century UF Condenser Fan AC Motor 3/4 hp (each)

Product Description

The Regal Beloit FSE1076SV1 is a UF condenser fan AC motor with three-quarter horsepower. It operates efficiently at 208 to 230 volts AC and supports a frequency rating of 60 Hz. Designed for heat pump applications, it is suitable for condenser fan motors and features a NEMA 48 frame. The motor runs at a speed of one thousand seventy-five RPM.

• Energy efficient
• Reversible rotation
• Continuous duty, air-over design

Product Highlights

This motor is built for demanding applications. Its enclosed design ensures durability, and it is CSA certified and UL listed for safety standards.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: FSE1076SV1

Technical Specifications

• Amperage Rating: 5.2 A
• Application: Heat Pump
• Bearing Type: Sleeve
• Dimensions: 5.625 inches diameter x 12.06 inches length
• Enclosure Type: Enclosed
• Frequency Rating: 60 Hz
• Horsepower: 3/4 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 phase
• Package Weight: 18.0 lb
• Rotation: Reversible
• Speed: 1075 RPM
• Type: UF
• Voltage Rating: 208 to 230 VAC
