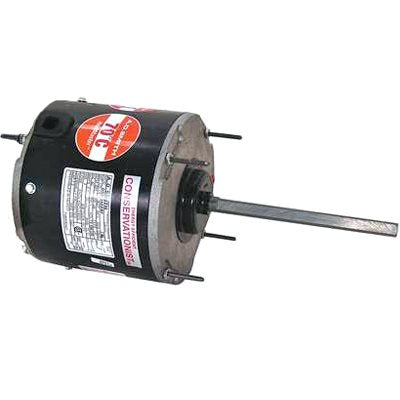

Regal Beloit FSE1058SF Century HeatMaster 1/2 hp UF Condenser Fan AC Motor 208 to 230 VAC

Product Description

The Regal Beloit FSE1058SF is a condenser fan AC motor designed for use in heat pumps. It operates with a power rating of one-half horsepower and is compatible with voltages ranging from two hundred eight to two hundred thirty VAC. This motor features an enclosed design, ensuring durability and performance in various conditions.

• Energy efficient design
• Continuous duty rated
• Single-phase operation

Product Highlights

This motor is ideal for heat pump applications, providing reliable and efficient performance.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: FSE1058SF

Technical Specifications

• Horsepower: 1/2 hp
• Voltage Rating: 208 to 230 VAC
• Amperage Rating: 2.5 A
• Frequency Rating: 60 Hz
• Speed: 825 rpm
• Dimensions: 5.625 inches Dia x 12.11 inches L
• Enclosure Type: Enclosed
• Frame: NEMA 48
• Number of Phases: 1 ph
• Service Factor: 1
• Rotation: Reversible
• Temperature Rating: 158 degrees F
• Application: Heat Pump
• Application Type: Condenser Fan Motors
• Bearing Type: Sleeve
• Insulation Class: Class F
• Package Weight: 17.0 lb
• Number of Speeds: 1
• Mfg Standards/Approvals: CSA Certified, UL Listed
