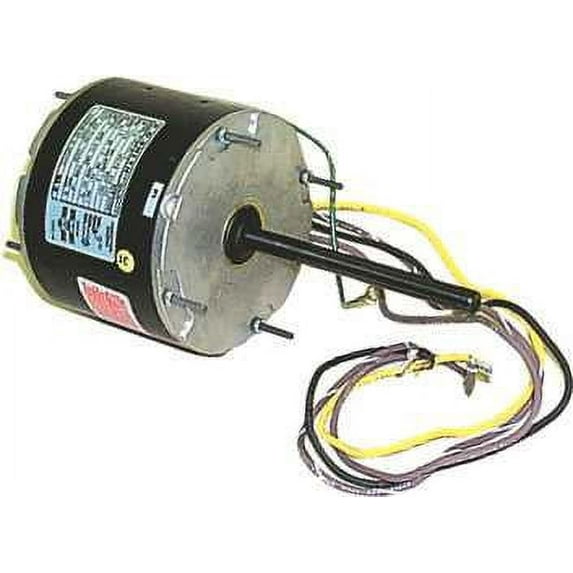

Regal Beloit FSE1056SV1 Condenser Fan Motor 1/2 HP 1075 RPM 208-230V 48 PSC

Product Description

The Regal Beloit FSE1056SV1 condenser fan motor features a 1-speed, 48-frame enclosed design, operating at 1075 RPM with 208-230V, 1-phase, 60 Hz power, ideal for HVAC condenser units. It ensures efficient heat dissipation, enhancing cooling system performance and reliability in outdoor conditions. The motor’s robust build supports long-lasting operation in AC systems.

• 1-speed
• 48-frame enclosed design
• Operates at 1075 RPM
• Efficient heat dissipation

Product Highlights

This condenser fan motor is designed for HVAC condenser units, ensuring efficient heat dissipation and reliable cooling system performance.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: FSE1056SV1

Technical Specifications

• CATALOG NUMBER: FSE1056SV1
• CONNECTION DRAWING NO: 614131-242
• DUTY: Air Over
• EFFICIENCY: Standard
• ENCLOSURE: TOTALLY ENCLOSED
• FL AMPS: 4 A
• FRAME: 48
• FREQUENCY: 60 HZ
• HEIGHT: 6.81 IN
• INSULATION CLASS: B
• MANUFACTURE MODEL NUMBER: FSE1056SV1
• MANUFACTURER: Regal Beloit Epc
• MOTOR TYPE: Psc
• MOUNTING: Extended Studs
• NOMINAL EFFICIENCY: 67.9
• NUMBER OF POLES: 6
• NUMBER OF SPEEDS: 1
• ORIENTATION: Any
• OUTPUT: 1/2 HP
• OVERLOAD: Automatic
• ROTATION: Reversible
• RPM: 1075(1)
• SERVICE FACTOR: 1
• SHAFT: 0.500 IN X 6.4 IN
• SHAFT DIAMETER (IN IN.): 0.500 IN
• SHAFT EXTENSION: 6.4 IN
• SHAFT TYPE: Double Flat
• SPEED: 1075
• TYPE OF OVERLOAD PROTECTOR: Thermally Protected
• UL: Recognized
• VOLTAGE: 208-230 V
• WIDTH: 6.45 IN
• Brand: Regal Beloit
• Voltage Rating: 208 to 230 V
• Amperage Rating: 4.2 A
• HP Rating: 1/2 hp
• Speed Rating: 1075 rpm
• Power Rating: 0.37 kW
• Phase: 1 ph
• Motor Enclosure Type: Enclosed
• Frame Size: 48
• Shaft Size: 1/2 in Dia x 6-1/2 in L
• Bearing Type: Ball
• Mounting Type: All Angle
• Frame Length: 4-3/4 in
• MFD Rating: 10 uF
• Material: Rolled Steel
• Temperature Rating: 60 deg C
• Dimensions: 5.625 in Dia x 11.74 in L
• Weight: 18.00 lb
