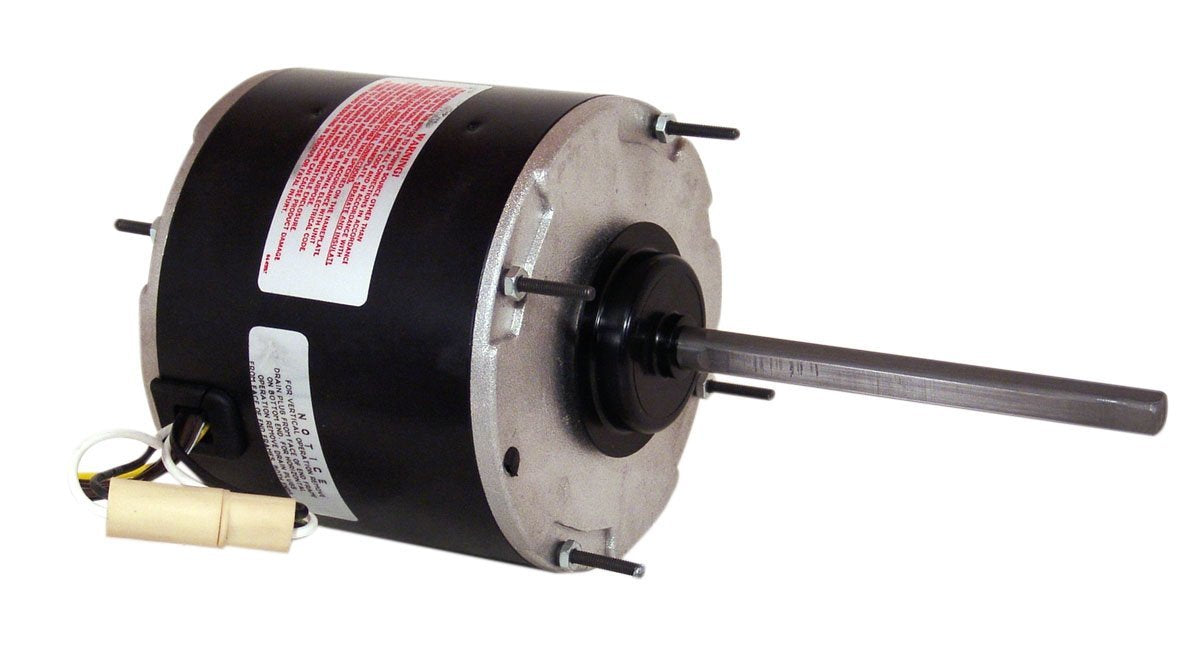

Regal Beloit FSE1036SV1 Century UF Condenser Fan AC Motor, 1/3 hp, 208 to 230 VAC

Product Description

Regal Beloit FSE1036SV1 is a UF condenser fan AC motor with a power rating of one third horsepower. It operates on two hundred eight to two hundred thirty volts alternating current and is designed for continuous duty applications, making it suitable for heat pumps and other HVAC systems.

• Energy efficient operation
• Reversible rotation
• NEMA 48 frame size

Product Highlights

This motor provides reliable performance in various environments with a compact design for ease of installation. Its enclosed design protects internal components while ensuring optimal airflow and cooling efficiency.

Product Information

Standard Information

• Brand: Regal Beloit
• Part Number: L6327

Technical Specifications

• Horsepower: 1/3 hp
• Voltage Rating: 208 to 230 VAC
• Frequency Rating: 60 Hz
• Amperage Rating: 2.7 A
• Dimensions: 5.625 inches diameter x 11.3 inches length
• Weight: 17.0 lb
• Shaft Size: 1/2 inches diameter x 6.44 inches length
• Insulation Class: Class B
• Enclosure Type: Enclosed
• Number of Phases: 1 ph
• Number of Speeds: 1
• Service Factor: 1
• Rotation: Reversible
• Application Type: Condenser fan motors
• Manufacturing Standards/Approvals: CSA Certified, UL Listed
• Temperature Rating: 60 degrees C
