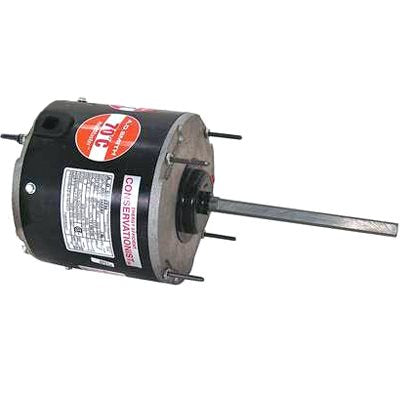

Regal Beloit FSE1028SF Century HeatMaster UF Condenser Fan AC Motor, 1/4 hp, 208 to 230 VAC, 60 Hz, 1 ph, NEMA 48

Product Description

The Regal Beloit FSE1028SF is a UF condenser fan AC motor with a power rating of one-fourth horsepower. This motor is designed for use in heat pump systems, providing efficient operation at voltages ranging from two hundred eight to two hundred thirty VAC and a frequency of sixty hertz.

• One-fourth horsepower operation
• Enclosed NEMA 48 frame design
• Speed of eight hundred twenty-five RPM

Product Highlights

Ideal for HVAC applications and known for reliability, this motor functions effectively in heat pumps and air conditioning systems.

Product Information

Standard Information

• Brand: Regal Beloit
• Model Number: FSE1028SF

Technical Specifications

• Amperage Rating: 1.5 A
• Application: Heat Pump
• Application Type: Condenser Fan Motors
• Bearing Type: Sleeve
• Dimensions: 5.625 inches diameter x 11.11 inches length
• Enclosure Type: Enclosed
• Frame: NEMA 48
• Frequency Rating: 60 Hz
• Horsepower: 1/4 hp
• Insulation Class: Class F
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 1
• Package Weight: 13.0 lb
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 inch diameter x 6-1/2 inches length
• Speed: 825 rpm
• Temperature Rating: 158 degrees F
• Type: UF
• Voltage Rating: 208 to 230 VAC
