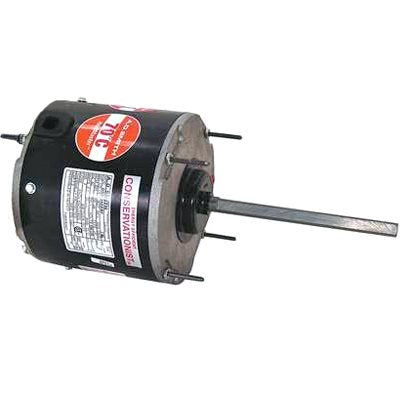

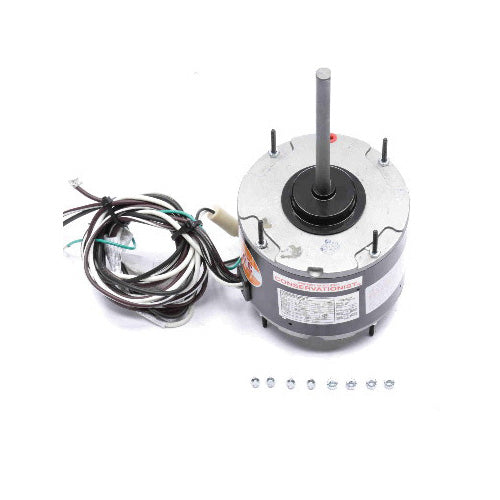

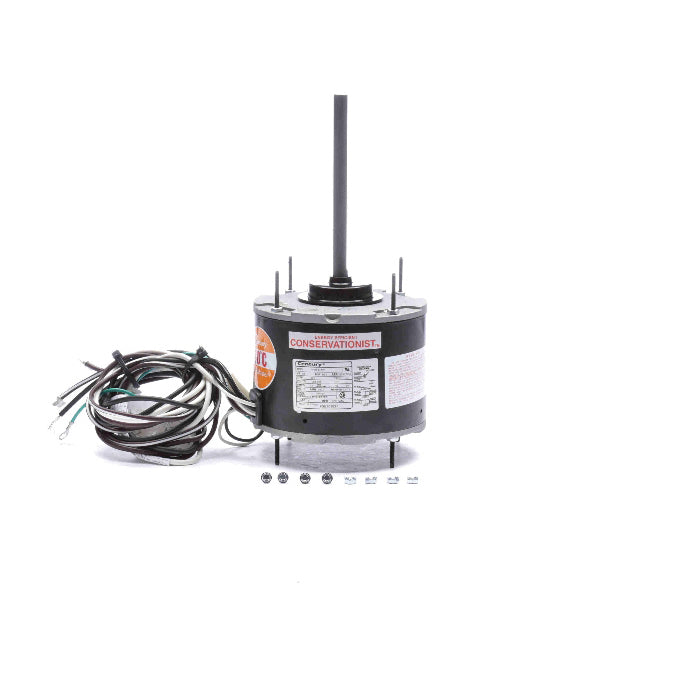

Regal Beloit FSE1018SF Century 8-Pole HVAC/R Motor 1/6 hp 208 to 230 V

Product Description

The Regal Beloit FSE1018SF is an eight-pole HVAC and refrigeration motor. This motor operates at one-sixth horsepower and can handle voltages from two hundred eight to two hundred thirty volts. It has a totally enclosed air-over design suitable for various applications, including heat pumps and condenser fan motors.

• Requires a five microfarad, three hundred seventy volt capacitor (not included)
• Thermally protected with automatic overload protection
• Includes extended stud shaft and mounting holes for easy installation

Product Highlights

This motor is efficient for heat pump systems, offering reliable operation under demanding conditions.

Product Information

Standard Information

• Brand: Regal Beloit
• Horsepower: 1/6 hp

Technical Specifications

• Amperage Rating: 1.1 A
• Application: Heat Pump
• Application Type: Condenser Fan Motors
• Bearing Type: Sleeve
• Dimensions: 5.6 in Dia x 11.49 in L
• Enclosure Type: Totally Enclosed Air Over
• Frame: NEMA 48
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Rotation: Reversible
• Shaft Size: 1/2 in Dia x 6-1/2 in L
• Speed: 825 rpm
• Temperature Rating: 70 deg F
• Type: 8-Pole
• Voltage Rating: 208 to 230 VAC
• Material: Rolled Steel
