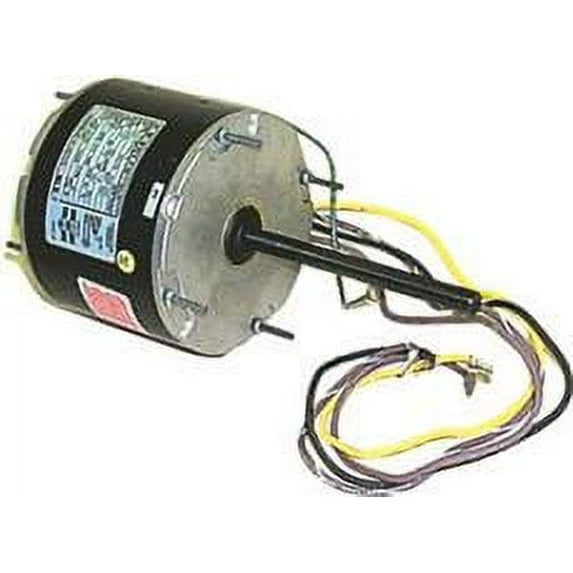

Regal Beloit FSE1016SV1 UF Condenser Fan AC Motor 1/6 hp NEMA 48

Product Description

The REGAL BELOIT FSE1016SV1 UF Condenser Fan AC Motor is a 1/6 hp motor designed for heat pump applications. It features a NEMA 48 frame and enclosed enclosure. This motor operates at 208 to 230 VAC and 60 Hz, with a single-phase and a speed of 1075 rpm. It is suitable for condenser fan applications.

• Energy efficient
• Reversing plug
• Continuous duty, air-over

Product Highlights

This AC motor is ideal for condenser fan applications, offering efficient and reliable performance with its reversible rotation and continuous duty design.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: FSE1016SV1

Technical Specifications

• Amperage Rating: 1.4 A
• Application: Heat Pump
• Application Type: Condenser Fan Motors
• Bearing Type: Sleeve
• Enclosure Type: Enclosed
• Frame: NEMA 48
• Frequency Rating: 60 Hz
• Horsepower: 1/6 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 1
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 6.44 in L
• Speed: 1075 rpm
• Temperature Rating: 60 deg C
• Type: UF
• Voltage Rating: 208 to 230 VAC
