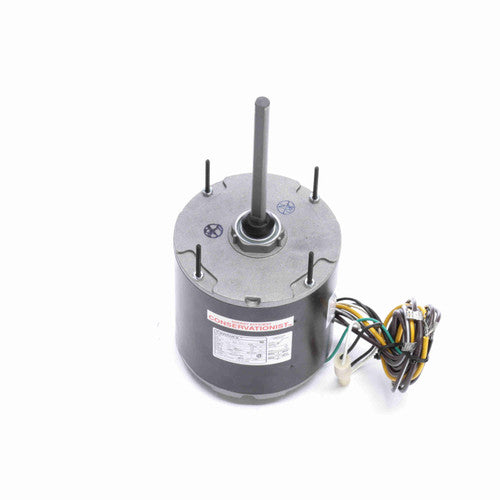

Regal Beloit FS1076S Century Condenser Fan Motor 3/4 HP 208-230 V

Product Description

The Regal Beloit FS1076S Century Condenser Fan Motor is a reliable motor designed for various applications such as condenser fans, heat pumps, and refrigeration units. This motor operates at three-fourths horsepower and is powered by 208 to 230 volts. It runs at a speed of one thousand seventy-five revolutions per minute and is intended for use in environments with an ambient temperature of up to sixty degrees Celsius.

• Single-phase operation with automatic thermal protection
• Includes a half-inch diameter shaft with double flat and twenty-seven-inch leads
• Requires a capacitor rated at ten microfarads and three hundred seventy volts (not included)

Product Highlights

This motor features a semi-enclosed design, making it suitable for outdoor applications. It also has a service factor of one, ensuring reliable performance under typical conditions.

Product Information

Standard Information

• Phase: 1
• Output HP: 3/4 HP

Technical Specifications

• Voltage: 208-230 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Semi Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 4.8 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 12.53 inches
• Frame Length: 5.00 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.4 inches
