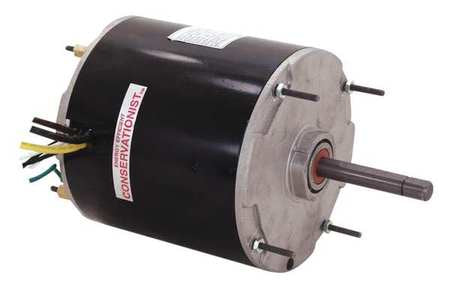

Regal Beloit FEH1056S UF Condenser Fan AC Motor, 1/2 hp, 460 VAC

Product Description

The Regal Beloit FEH1056S is a UF condenser fan AC motor with a horsepower rating of one half and operates on 460 VAC at sixty hertz. It features a NEMA 48Y frame and runs at a speed of one thousand fifty RPM. This motor is ideal for use in heat pumps and suitable for various applications requiring continuous duty.

• Continuous duty rated motor.
• Suitable for heat pumps and condenser fans.
• Reversible rotation for versatile applications.

Product Highlights

This model is designed for reliable performance in residential and commercial HVAC applications.

Product Information

Standard Information

• Brand: Regal Beloit
• Part Number: L6363

Technical Specifications

• Amperage Rating: 0.9 A
• Application: Heat Pump
• Application Type: Condenser Fan Motors
• Bearing Type: Ball
• Dimensions: 5-5/8 inches Diameter
• Enclosure Type: Enclosed
• Frame: NEMA 48Y
• Frequency Rating: 60 Hz
• Horsepower: 1/2 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 1
• Package Weight: 19.0 lb
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 inches Diameter x 3-5/16 inches Length
• Speed: 1050 rpm
• Temperature Rating: 60 degrees C
• Type: UF
• Voltage Rating: 460 VAC
