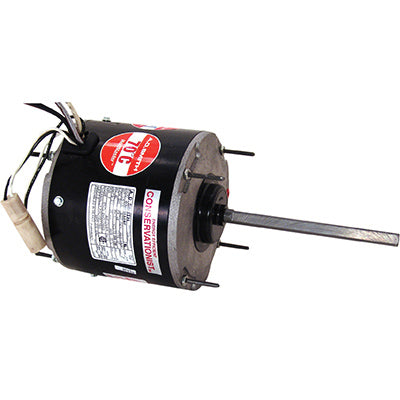

Regal Beloit FE1056SF Century HeatMaster Condenser Fan Motor 1/2 hp

Product Description

The REGAL BELOIT FE1056SF Century HeatMaster Condenser Fan Motor is a 1/2 hp motor designed for condenser fan and heat pump units. It operates at 208 to 230 VAC, 60 Hz, and 1075 rpm. The motor features an enclosed enclosure and can be mounted using a belly band or studs. It has a reversible rotation and requires a 10 uF at 370 VAC capacitor.

• High temperature UL/overload protector
• Designed for condenser fan and heat pump units requiring vertical shaft-up or vertical shaft down positioning with belly band or extended clamp screw mounting
• Double sealed ball bearing or dependable all-angle sleeve bearings

Product Highlights

This condenser fan motor is energy efficient and suitable for all-angle mounting. It features continuous duty, air-over operation and water-resistant reversing plug.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: FE1056SF
• Country of Origin: India

Technical Specifications

• Amperage Rating: 4 A
• Application Type: Condenser Fan Motors
• Bearing Type: Double Sealed Ball
• Enclosure Type: Enclosed
• Frame: NEMA 48
• Frequency Rating: 60 Hz
• Horsepower: 1/2 hp
• Insulation Class: Class F
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 1
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 6-1/2 in L
• Speed: 1075 rpm
• Temperature Rating: 70 deg C Ambient
• Voltage Rating: 208 to 230 VAC
• Mounting Type: Belly Band/Stud
• Output KW: 0.37 kW
• Voltage: 208-230 V
• Thermal Protection: Automatic
• Efficiency: 69.1 %
• Current: 4.0 A
• Duty: Air Over
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 12.74 in
• Frame Length: 4.75 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.5 in
• Weight: 18.00 LB
