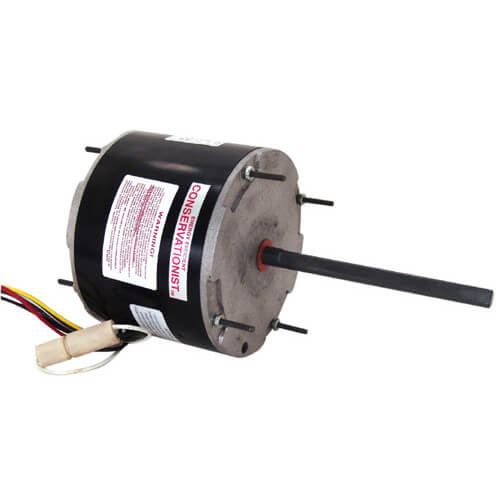

Regal Beloit FE1036SC Century by Packard Condenser Fan Motor 1/3 hp 208 to 230 VAC

Product Description

The Regal Beloit FE1036SC Century by Packard Condenser Fan Motor has a power rating of 1/3 horsepower and operates at 208 to 230 VAC.

• Automatic overload protection
• Ball bearing type for smooth operation
• Reversible rotation

Product Highlights

This motor is built for condenser fan applications and provides solid performance for HVAC systems.

Product Information

Standard Information

• Brand: Regal Beloit
• UPC: 786674005656

Technical Specifications

• Amperage Rating: 1.8 A
• Application Type: Condenser Fan Motors
• Bearing Type: Ball
• Dimensions: 5-5/8 in Dia
• Enclosure Type: Enclosed
• Frame: NEMA 48
• Frequency Rating: 60 Hz
• Horsepower: 1/3 hp
• Mounting Style: Belly Band/Stud
• Number of Phases: 1 ph
• Number of Speeds: 1
• Package Height: 7.0 in
• Package Length: 14.0 in
• Package Width: 6.75 in
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 in Dia x 6 in L
• Speed: 1075 rpm
• Temperature Rating: 60 deg C Ambient
• Voltage Rating: 208 to 230 VAC
