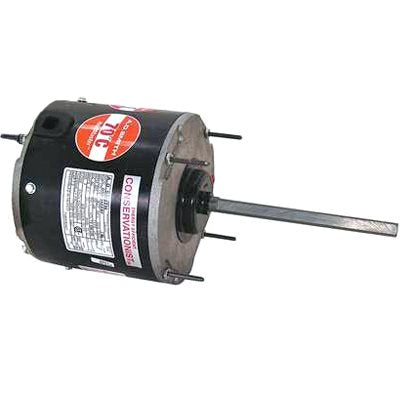

Regal Beloit FE1016SF Century HeatMaster UF Condenser Fan AC Motor, 1/6 hp, 208 to 230 VAC

Product Description

The Regal Beloit FE1016SF Century HeatMaster UF Condenser Fan AC Motor is designed for efficiency and performance. This motor operates at one-sixth horsepower and is suitable for use with heat pumps. It supports voltages ranging from two hundred eight to two hundred thirty VAC, and its frequency rating is sixty Hertz. Built for continuous duty, it is ideal for air conditioning and cooling applications.

• Single-phase operation
• Ball bearing design
• Reversible rotation

Product Highlights

The FE1016SF meets CSA and UL standards, ensuring safety and reliability for trade professionals.

Product Information

Standard Information

• Brand: Regal Beloit
• Part Number: L6339

Technical Specifications

• Horsepower: 1/6 hp
• Voltage Rating: 208 to 230 VAC
• Amperage Rating: 1.4 A
• Frequency Rating: 60 Hz
• Shaft Size: 1/2 in Dia x 6-1/2 in L
• Dimensions: 5.625 in Dia x 10.49 in L
• Enclosure Type: Enclosed
• Frame: NEMA 48
• Application Type: Condenser Fan Motors
• Service Factor: 1
• Number of Phases: 1 ph
• Rotation: Reversible
• Temperature Rating: 158 deg F
• Insulation Class: Class F
• Package Weight: 10.6 lb
• Manufacturing Standards: CSA Certified, UL Listed
