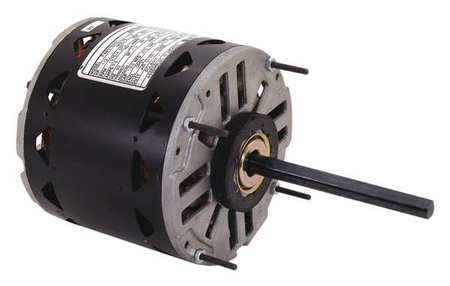

Regal Beloit FD6001A Century by Packard MasterFit Pro AC Motor 3/4, 1/5 hp REPLACEMENT MPN

Product Description

The Regal Beloit FD6001A Century by Packard MasterFit Pro AC Motor provides reliable performance for cooling and heating applications. It is rated at 3/4 and 1/5 horsepower, making it suitable for various HVAC systems. This single-phase motor operates at a voltage of 208 to 230 VAC and at a frequency of 60 Hz.

• Permanent split capacitor for efficient operation
• Mounting options include belly band, thru-bolts, or shell holes
• Reversible rotation for flexible installation

Product Highlights

The FD6001A features a durable NEMA 48 frame and an open air over enclosure. It runs at a speed of 1075 rpm and includes Class B insulation for thermal protection.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: FD6001A

Technical Specifications

• Amperage Rating: 4 A
• Bearing Type: Ball
• Enclosure Type: Open Air Over
• Frame: NEMA 48
• Frequency Rating: 60 Hz
• Horsepower: 3/4, 1/5 hp
• Insulation Class: Class B
• Number of Phases: 1 ph
• Rotation: Reversible
• Shaft Size: 1/2 in Dia x 5 in L
• Speed: 1075 rpm
• Temperature Rating: 40 deg C Ambient
• Voltage Rating: 208 to 230 VAC
