Regal Beloit FC1106F Century by Packard HeatMaster Commercial Cond Fan Mtr 1 hp 200 to 230/460 VAC

Product Description

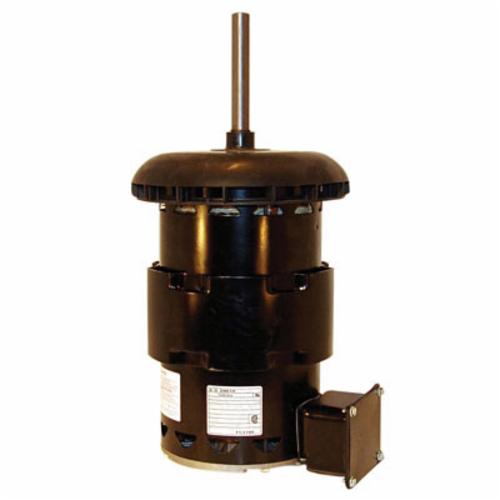

The Regal Beloit FC1106F is a Century by Packard heatmaster commercial condenser fan motor. It features a one horsepower rating, operating at two hundred to two hundred thirty or four hundred sixty VAC, under a frequency of sixty hertz. This motor is designed with a belly band mount and runs at a speed of one thousand seventy-five RPM.

• Automatic overload protection
• Energy efficient
• Supported by a conversion kit for most 56 frame applications

Product Highlights

This motor is robust and efficient, offering reliable performance in various applications. It includes a patented fan canopy and is suitable for solid-state speed control.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: FC1106F

Technical Specifications

• Horsepower: 1 hp
• Voltage Rating: 200 to 230/460 VAC
• Amperage Rating: 6.4/3.2 A
• Speed: 1075 rpm
• Mounting Style: Belly Band
• Enclosure Type: Totally Enclosed Open Air Over
• Frame: NEMA 48
• Diameter: 5-5/8 in
• Rotation: Reversible
