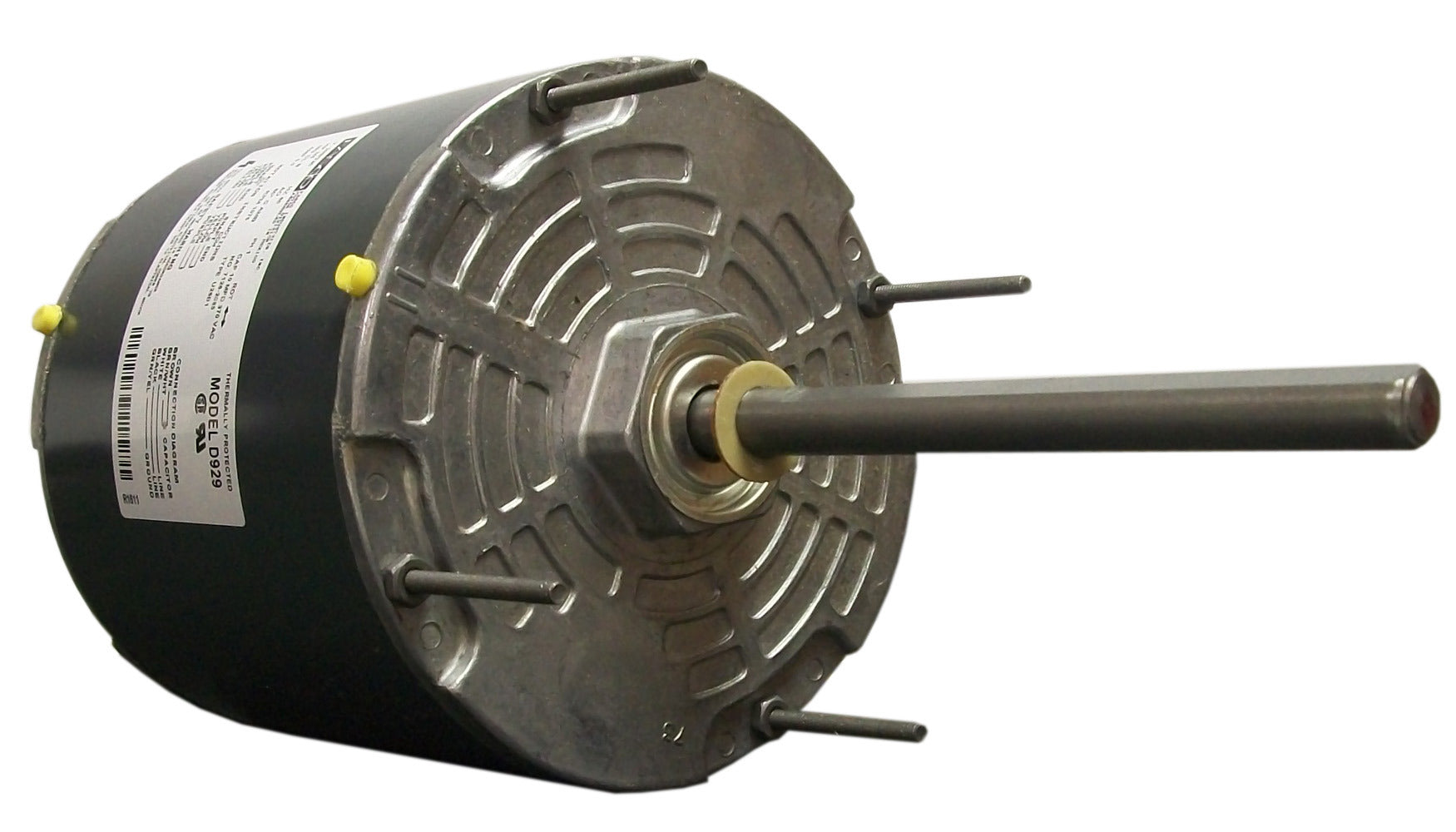

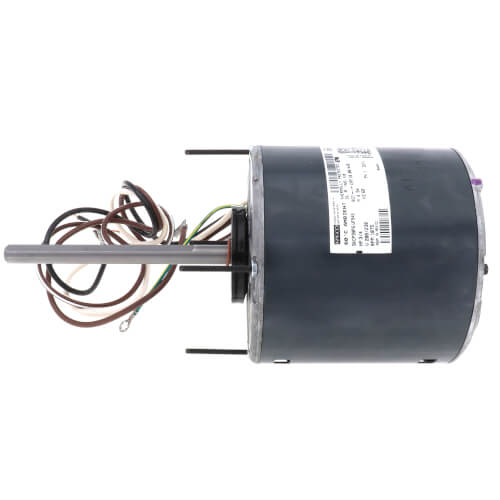

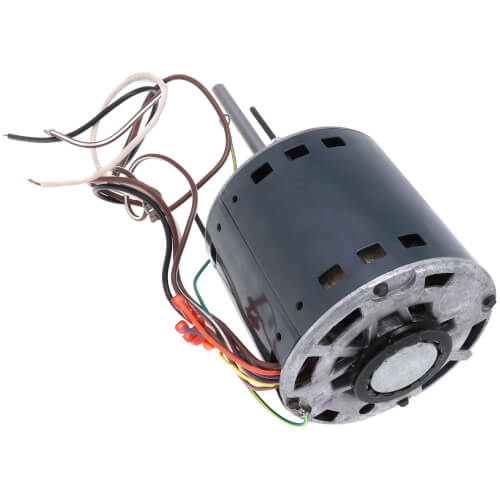

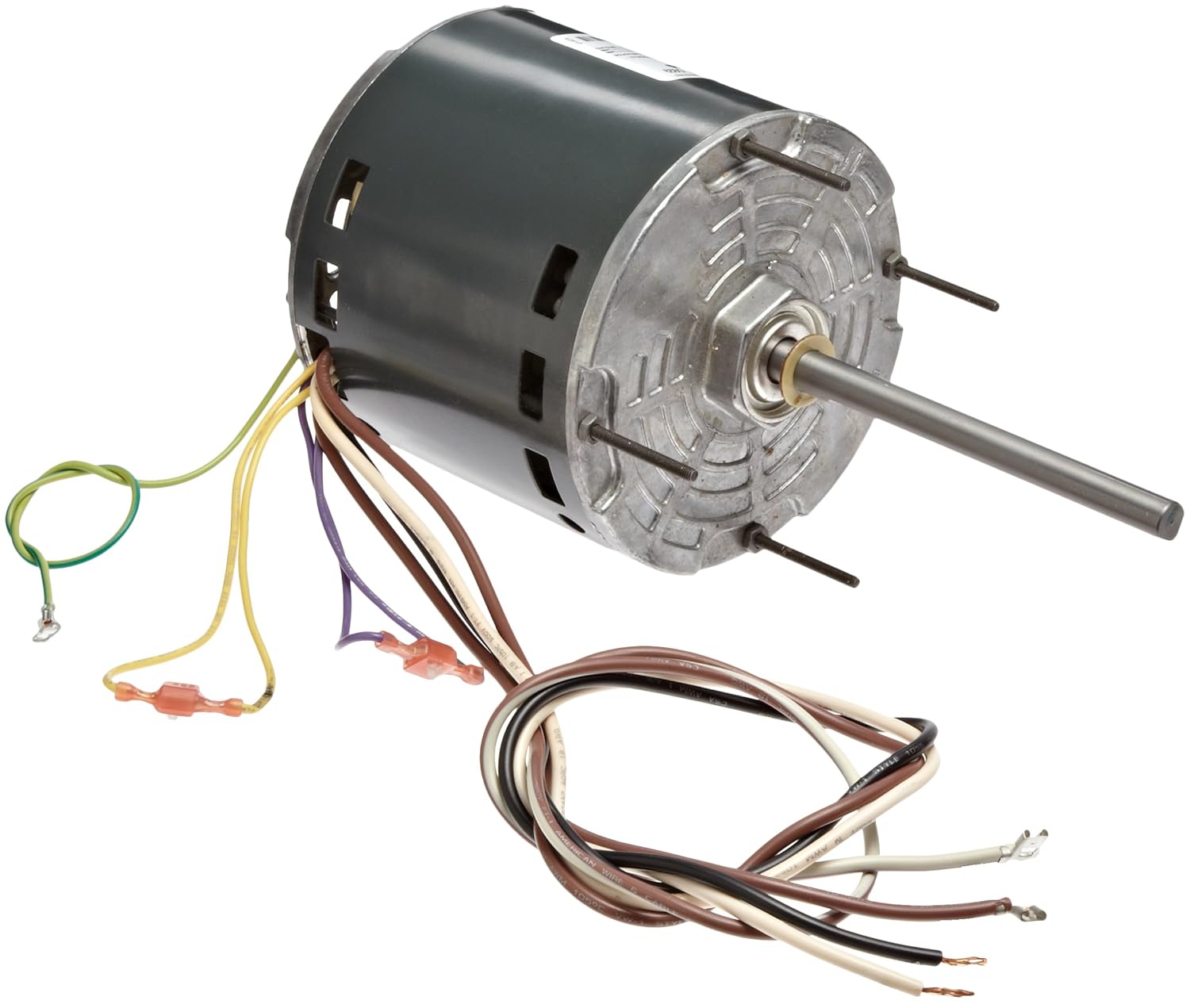

Fasco D929 5.6 Frame Permanent Split Capacitor Condenser Fan Motor 3/4HP 1075rpm 208-230V 60Hz

Product Description

The Fasco D929 is a condenser fan motor designed with a 5.6 frame and permanent split capacitor. It operates at 3/4HP and 1075rpm with a voltage range of 208-230V and a frequency of 60Hz. This motor includes a sleeve bearing and a shaft measuring 1/2 inch in diameter and 6-1/4 inches in length.

• Thermally protected
• Reversible rotation
• Includes shaft water slinger

Product Highlights

Fasco D929 offers reliable thermal protection, reversible rotation, and a durable sleeve bearing making it suitable for various HVAC applications.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Brand: Fasco

Technical Specifications

• MPN: D929
• Horsepower: 0.75 HP
• Speed: 1075 RPM
• Voltage: 208-230 Volts
• Frequency: 60 Hz
• Amperage: 4.94 A
• Frame: 48Z
• Diameter: 5.6 inches
• Enclosure: Open Air Over
• Phase: Single
• Rotation: Counterclockwise/Clockwise
• Material: Rolled Steel
• Bearings: Ball
• Shaft Diameter: 0.5 inches
• Shaft Length: 5.75 inches
• Ambient Temperature: 60°C
