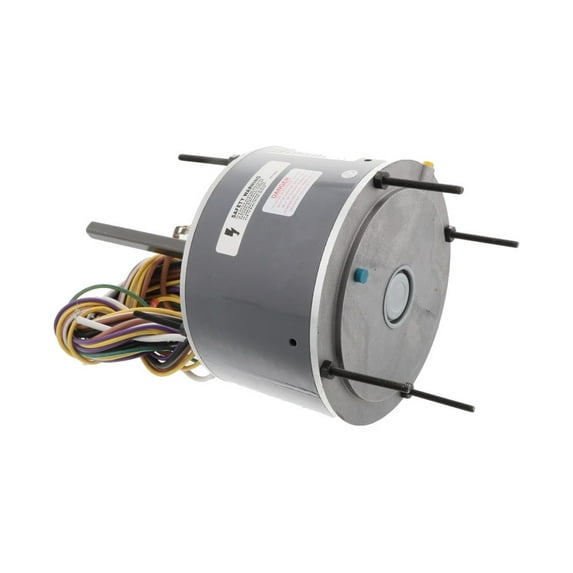

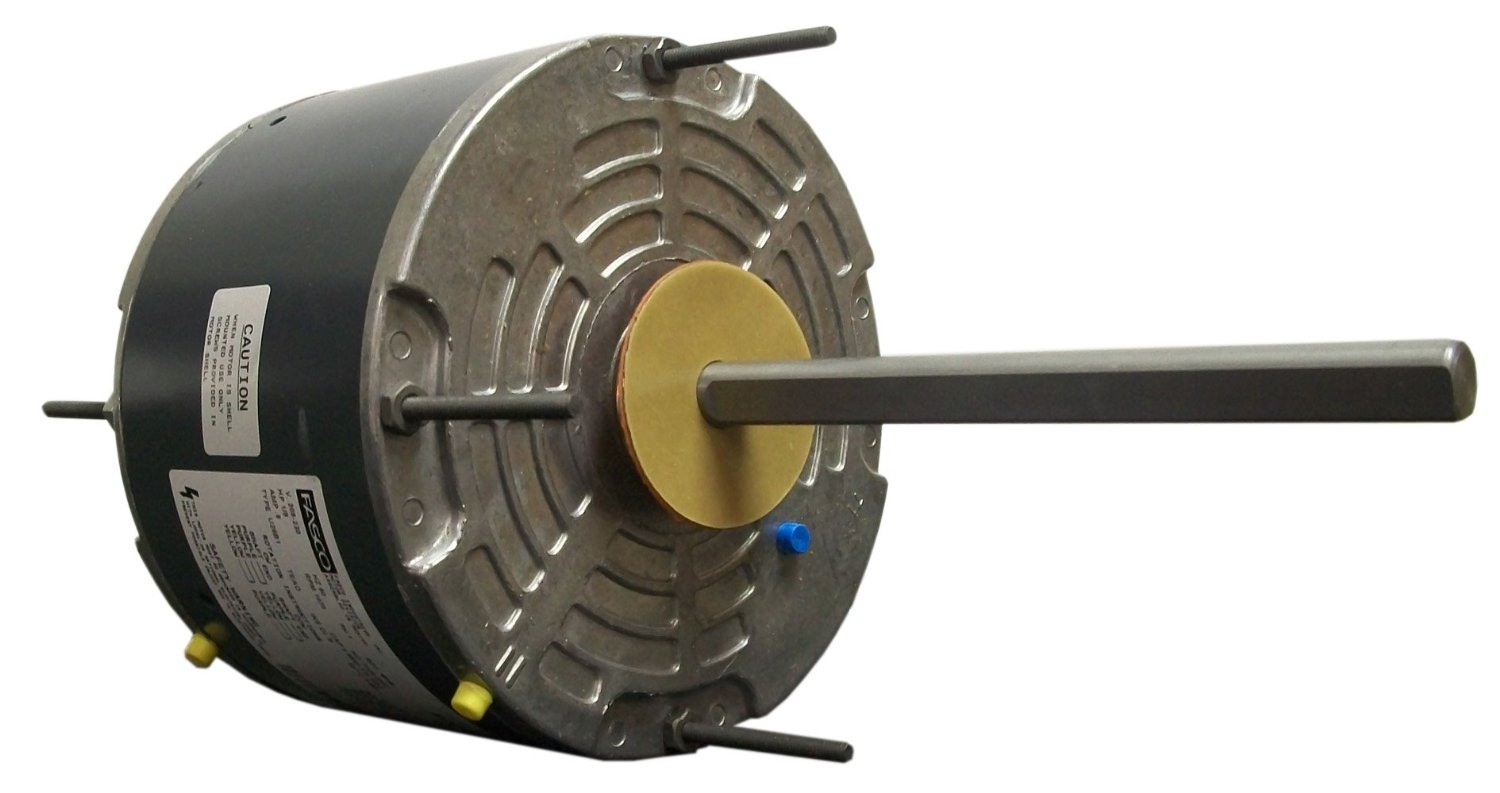

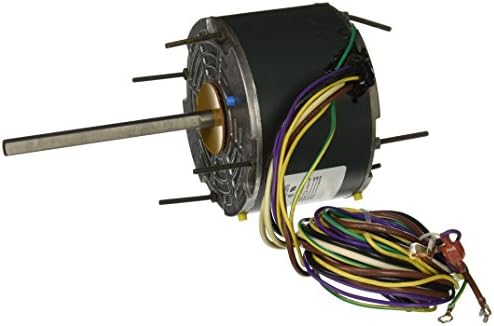

Genteq Motors D919 Condenser Fan Motor 1/8 HP

Product Description

The GENTEQ MOTORS D919 is an OEM authorized condenser fan motor that fits various Fasco models. This motor operates at 208-230V, 60 Hz and 1075 RPM. It features class B insulation and is thermally protected with a totally enclosed air over enclosure. The product is manufactured in the United States.

• O.E.M. authorized part
• Fits various Fasco models
• Thermally Protected

Product Highlights

The GENTEQ MOTORS D919 is a condenser fan motor with a 5.6" diameter and a 48 frame. It requires a 5 Mfd-370 Volts capacitor (not supplied).

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: D919
• Country of Origin: US

Technical Specifications

• Brand: Fasco
• Item model number: D919
• Phase: 1
• Output HP: 1/8 Hp
• Output KW: 0.10 kW
• Voltage: 208-230 V
• Speed: 1075 rpm
• Service Factor: 1
• Frame: 48
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 0.79 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Frame Length: 3.74 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.0 in
• Model: D919
