Genteq Motors D895 oem Replacement Motor 1/8 hp replacement mpn

Product Description

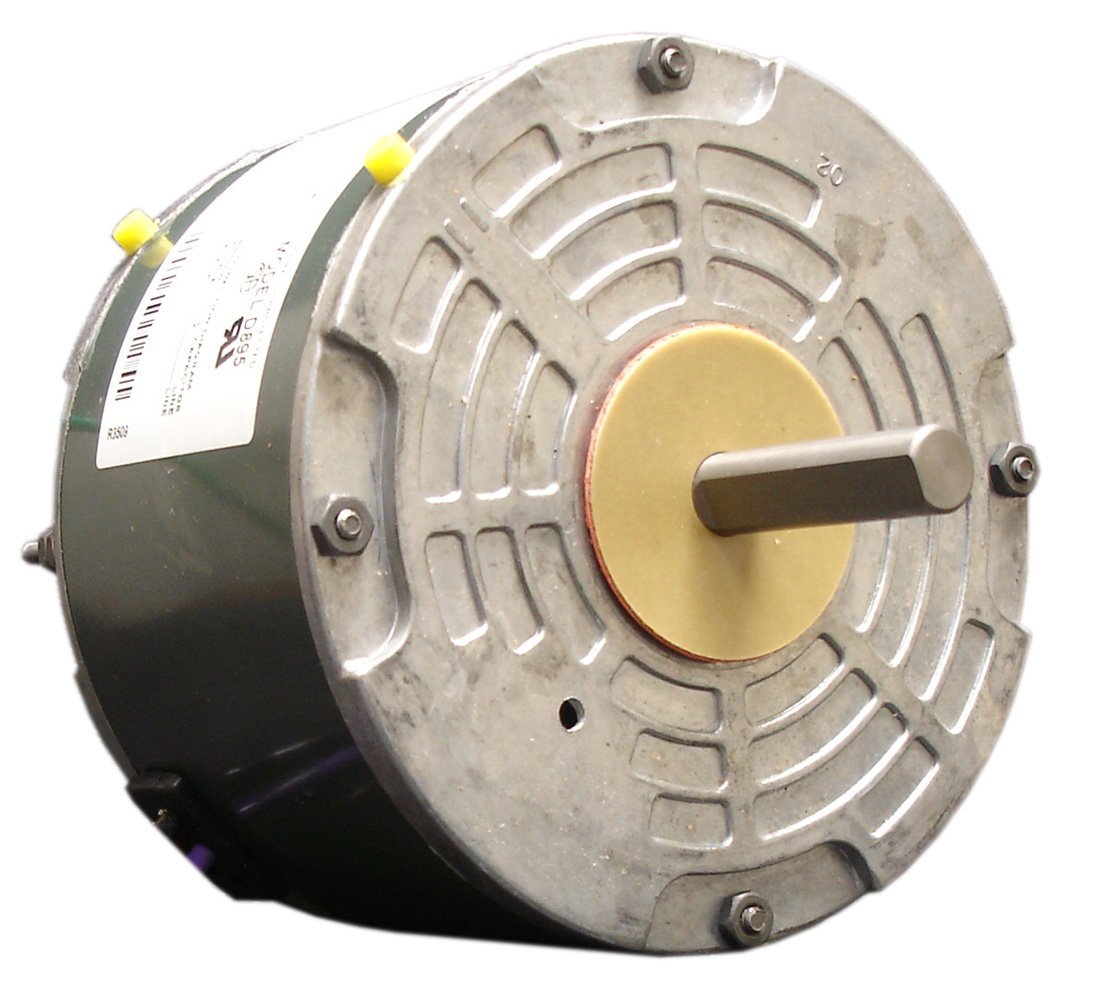

The GENTEQ MOTORS D895 is a FASCO OEM replacement motor operating at 200-230 V and 60 Hz. This 1/8 HP motor runs at 1650 RPM with one speed and features a 48 frame. It is designed for continuous duty and includes automatic thermal protection. Ideal for various applications requiring a reliable replacement motor.

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)

Product Highlights

This motor is thermally protected with class B insulation and a 60°C ambient temperature rating. It features sleeve bearings and a 1/2" diameter shaft with a flat.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: D895
• Country of Origin: Thailand

Technical Specifications

• Phase: 1
• Output HP: 1/8 Hp
• Output KW: 0.10 kW
• Voltage: 200-230 V
• Speed: 1650 rpm
• Service Factor: 1
• Frame: 48
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 0.72 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 4
• Rotation: Clockwise Shaft End
• Mounting: Extended Studs
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.500 in
• Shaft Extension: 2.0 in
• Brand: GENTEQ MOTORS
• MPN: D895
• Frame Length: 3.54 in
